How to replace the Blend Door Actuator on Chevrolet HHR?

First disconnect the fuse named HVAC CTRL (BATT) and knee bolster reinforcement. Then, remove the instrument panel tie bar and remove the air temperature actuator electrical connector. Take out the screws that are fixed to the air temperature actuator, and then remove the actuator. In installation, make sure that the key is in the OFF mode when joining the electrical connectors to ensure that it is calibrated correctly. Mount the air temperature actuator followed with screw fastening to 2.2 Nm (19 lb in). Reconnect the air temperature actuator electrical connector; install the I/P tie bar, as well as the knee bolster reinforcement. Finally, install the fuse served with a label of HVAC CTRL (BATT). Do not interfere with any controls on the HVAC control assembly during calibration to prevent incorrect hvac performance and, turn the engine starting it to run for a minute.

OEM Chevrolet HHR Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Blend Door Actuators found

View related parts

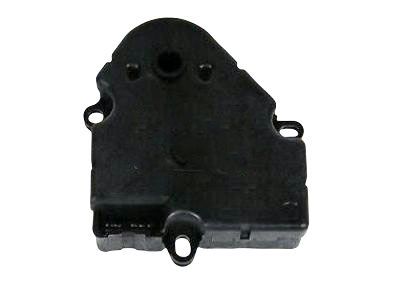

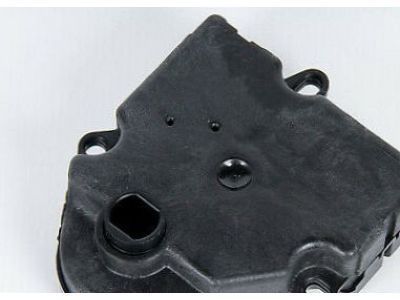

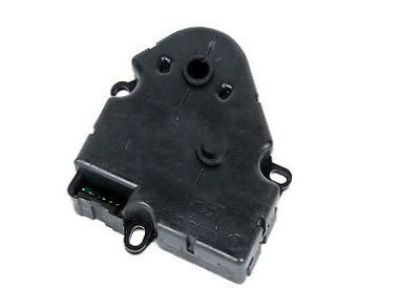

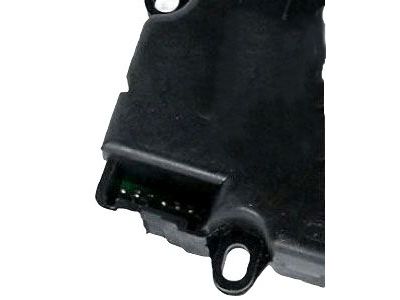

Chevrolet HHR Actuator Part Number: 10393075
$37.02 MSRP: $109.57
You Save: $72.55 (67%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Actuator Part Number: 15842338
$63.01 MSRP: $129.48
You Save: $66.47 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Air Conditioner Control; HVAC Heater Blend Door Actuator; Actuator, A/C Control
- Replaces: 52494371
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS

Chevrolet HHR Blend Door Actuator

Want to cut long-term maintenance and repair costs? Choose OEM Blend Door Actuator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet HHR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet HHR Blend Door Actuator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet HHR Blend Door Actuator Parts and Q&A

Actuator
10393075
Q: How to replace the Blend Door Actuator on Chevrolet HHR?
A:
First disconnect the fuse named HVAC CTRL (BATT) and knee bolster reinforcement. Then, remove the instrument panel tie bar and remove the air temperature actuator electrical connector. Take out the screws that are fixed to the air temperature actuator, and then remove the actuator. In installation, make sure that the key is in the OFF mode when joining the electrical connectors to ensure that it is calibrated correctly. Mount the air temperature actuator followed with screw fastening to 2.2 Nm (19 lb in). Reconnect the air temperature actuator electrical connector; install the I/P tie bar, as well as the knee bolster reinforcement. Finally, install the fuse served with a label of HVAC CTRL (BATT). Do not interfere with any controls on the HVAC control assembly during calibration to prevent incorrect hvac performance and, turn the engine starting it to run for a minute.
