How to replace the brake master cylinder on Chevrolet Express 3500?

Before replacing the Brake Master Cylinder you need to apply park brake then disconnect the brake pipes and plug them to stop brake fluid from getting dirty. You need to take out the Brake Master Cylinder mounting nuts that attach the Brake Master Cylinder to the Brake Booster and separate the Brake Master Cylinder from the booster. You should drain fluid from the master cylinder before putting it into service. Use the fastener notice from service precautions to install the Brake Master Cylinder to the Brake Booster and fasten it with the mounting nuts tightened to 36 nm (27 ft. Lbs.). Take off plug covers from brake lines and fasten them directly to the Brake Master Cylinder unit while tightening each connection to 30 nm torque (22 ft. Lbs.). To complete the process bleed the brake system through manual or pressure bleeding techniques and turn off the park brake.

How to overhaul the brake master cylinder on Chevrolet Express 3500?

Set the vehicle Brake Master Cylinder on a bench vise with its mounting flange held securely and expose the rear of the primary Piston to perform maintenance. Use a clean cloth to clean the outside area around the reservoir cap then replace the cap and diaphragm unit before inspecting both for damage and replacing any faulty components. Disassemble the master cylinder reservoir while pushing the primary Piston down using a round tool. The Piston retainer and primary assembly should then come off the cylinder bore. Safe-check the port openings while blowing filtered air through the front port to take the secondary Piston inside out with its seals and spring. Take the primary Piston system and its parts out from the secondary Piston. First clean all parts of the master cylinder system including the secondary Piston and return spring using denatured alcohol. Check for damage such as cracks, deformation and corrosion before replacing the parts. After filtering all pieces with non-oiled air you should use delco supreme 11 brake fluid gm p/n 12377967 or equal dot-3 from sealed source to lubricate the master cylinder bore the secondary Piston the return spring and other parts. Place the lubricated primary seal and retainer alongside secondary seal onto the secondary Piston before inserting the lubricated return spring and secondary Piston assembly inside the cylinder bore. Finally add the lubricated primary Piston assembly. Put on a light master cylinder master cylinder tool and press down the primary Piston before you add the new Piston retainer. After that connect the master cylinder reservoir onto the vehicle.

OEM Chevrolet Express 3500 Brake Master Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Brake Master Cylinders found

View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 19420962
$164.67 MSRP: $319.59
You Save: $154.92 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 15935845, 84397946, 84543807
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2018 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 85105169
$135.29 MSRP: $264.88
You Save: $129.59 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder
- Replaces: 84397948, 84543808, 84680664, 84873078
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2024 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 19420963
$198.33 MSRP: $384.93
You Save: $186.60 (49%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 15936936, 84397947
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2018 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Master Cylinder Assembly Part Number: 19236088
$127.50 MSRP: $228.70
You Save: $101.20 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 89056525
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts
Chevrolet Express 3500 Master Cylinder Assembly Part Number: 18039263
$165.67 MSRP: $297.16
You Save: $131.49 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts

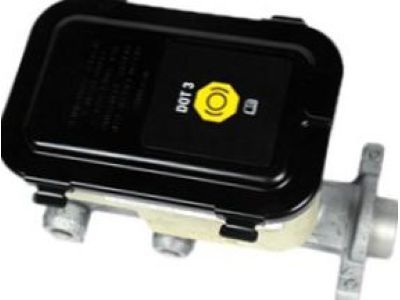

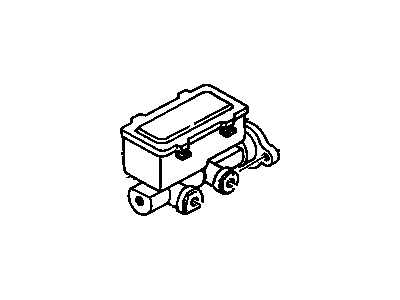

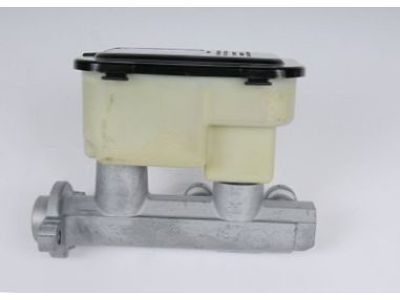

Chevrolet Express 3500 Master Cylinder Part Number: 19209268
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 18060792, 18029954
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 19209189
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 15146189, 15106442
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 25865166
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 15795984, 15795983
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Master Cylinder Part Number: 19209234
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 18047512
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

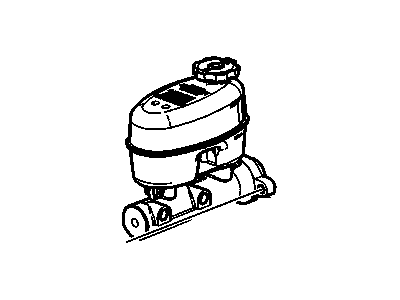

Chevrolet Express 3500 Master Cylinder Part Number: 19209198
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder; Brake Master Cylinder
- Replaces: 15269590, 89040423
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Overhaul Kit Part Number: 18022005
Product Specifications
- Other Name: Cylinder Kit, Brake Master; Cylinder Kit, Brake Master Cylinder
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS

Chevrolet Express 3500 Brake Master Cylinder

Want to cut long-term maintenance and repair costs? Choose OEM Brake Master Cylinder. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Express 3500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Express 3500 Brake Master Cylinder includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Express 3500 Brake Master Cylinder Parts and Q&A

Master Cylinder Assembly
18039263
Q: How to replace the brake master cylinder on Chevrolet Express 3500?
A:
Before replacing the Brake Master Cylinder you need to apply park brake then disconnect the brake pipes and plug them to stop brake fluid from getting dirty. You need to take out the Brake Master Cylinder mounting nuts that attach the Brake Master Cylinder to the Brake Booster and separate the Brake Master Cylinder from the booster. You should drain fluid from the master cylinder before putting it into service. Use the fastener notice from service precautions to install the Brake Master Cylinder to the Brake Booster and fasten it with the mounting nuts tightened to 36 nm (27 ft. Lbs.). Take off plug covers from brake lines and fasten them directly to the Brake Master Cylinder unit while tightening each connection to 30 nm torque (22 ft. Lbs.). To complete the process bleed the brake system through manual or pressure bleeding techniques and turn off the park brake.
Master Cylinder
19209234
Q: How to overhaul the brake master cylinder on Chevrolet Express 3500?
A:
Set the vehicle Brake Master Cylinder on a bench vise with its mounting flange held securely and expose the rear of the primary Piston to perform maintenance. Use a clean cloth to clean the outside area around the reservoir cap then replace the cap and diaphragm unit before inspecting both for damage and replacing any faulty components. Disassemble the master cylinder reservoir while pushing the primary Piston down using a round tool. The Piston retainer and primary assembly should then come off the cylinder bore. Safe-check the port openings while blowing filtered air through the front port to take the secondary Piston inside out with its seals and spring. Take the primary Piston system and its parts out from the secondary Piston. First clean all parts of the master cylinder system including the secondary Piston and return spring using denatured alcohol. Check for damage such as cracks, deformation and corrosion before replacing the parts. After filtering all pieces with non-oiled air you should use delco supreme 11 brake fluid gm p/n 12377967 or equal dot-3 from sealed source to lubricate the master cylinder bore the secondary Piston the return spring and other parts. Place the lubricated primary seal and retainer alongside secondary seal onto the secondary Piston before inserting the lubricated return spring and secondary Piston assembly inside the cylinder bore. Finally add the lubricated primary Piston assembly. Put on a light master cylinder master cylinder tool and press down the primary Piston before you add the new Piston retainer. After that connect the master cylinder reservoir onto the vehicle.
