How to Remove and Replace the Air Bag Clockspring Assembly on Chevrolet Equinox?

Start with front wheel alignment and Steering Wheel centering before beginning the removal process of air bag clock spring assembly / spiral cable. Disable the sir system. Start by taking off the inflatable restraint Steering Wheel module and following with removal of the Steering Wheel. Move the steering column covers aside before releasing the sir coil harness clips from their seat beneath the steering column. Remove the connections of sir coil with horn/cruise. Use a small flat-bladed tool to carefully release the sir coil assembly retaining tabs before pulling it off the steering column. You must run the sir wiring harness and horn/cruise connector down the steering column before putting the sir coil into position and connecting the sir coil and horn/cruise electrical connectors. Secure wiring harness clips onto the bracket under the column before putting on steering column covers and Steering Wheel. Finish up by installing the inflatable restraint Steering Wheel module before turning on the sir system.

OEM Chevrolet Equinox Air Bag Clockspring

Steering Wheel Airbag Coil

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Bag Clocksprings found

View related parts
Chevrolet Equinox Clockspring Part Number: 22899138
$83.72 MSRP: $124.58
You Save: $40.86 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System; Coil, Steering Wheel
- Replaces: 84316702, 42361580, 95019462, 95164178, 95164180, 95019460, 22775303
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Clockspring Part Number: 20940100
$131.35 MSRP: $196.34
You Save: $64.99 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 21994381, 15923770
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Clockspring Part Number: 39136242
$62.62 MSRP: $93.17
You Save: $30.55 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring
- Replaced by: 84532291
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Clockspring Part Number: 84532292
$329.76 MSRP: $492.92
You Save: $163.16 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 13492931, 39136243, 39017556, 84404719
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts

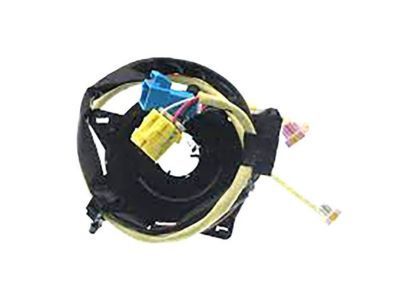

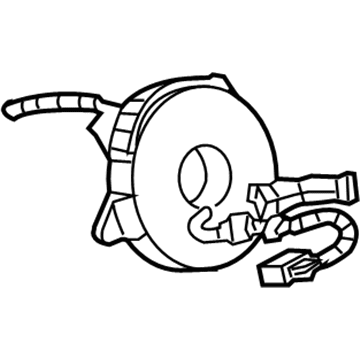

Chevrolet Equinox Clockspring Part Number: 15261949
Product Specifications
- Other Name: Coil Assembly-Inflatable Restraint Steering Wheel Module (W/Accessory; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 10363576
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS

Chevrolet Equinox Air Bag Clockspring

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Clockspring. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Air Bag Clockspring includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Air Bag Clockspring interfaces the Supplemental Restraint System (SRS) airbag module with the automobiles Electrical System power supply. This critical functionality enables the utilization of air bags during impacts hence boosting safety and the reduction of chances of an accident thus cutting on theca loss of lives. This part boasts of its dependability and efficiency; the Air Bag Clockspring material commonly used is a combination of plastic and metal; this makes it rigid and able to perform optimal under pressure. Compatibility with the first generation that began production in 2004 all the way to the latest generations is a sign of its centrality in the functioning of the Chevrolet Equinox's safety systems. Chevrolet has a renowned mid-size crossover SUV whose name is the Equinox; the vehicle has found its home in more than 2 million US homes. Some of the unique designs of the Air Bag Clockspring include the flexibility to interface with different engines and transmission in generations of this Chevrolet car. In combination with improving the efficiency of Equinox devices, the Air Bag Clockspring exemplifies an important element for the Chevrolet company and demonstrates Chevrolet's focus on quality and innovation in automobile construction.

Chevrolet Equinox Air Bag Clockspring Parts and Q&A

Clockspring
20940100
Q: How to Remove and Replace the Air Bag Clockspring Assembly on Chevrolet Equinox?
A:
Start with front wheel alignment and Steering Wheel centering before beginning the removal process of air bag clock spring assembly / spiral cable. Disable the sir system. Start by taking off the inflatable restraint Steering Wheel module and following with removal of the Steering Wheel. Move the steering column covers aside before releasing the sir coil harness clips from their seat beneath the steering column. Remove the connections of sir coil with horn/cruise. Use a small flat-bladed tool to carefully release the sir coil assembly retaining tabs before pulling it off the steering column. You must run the sir wiring harness and horn/cruise connector down the steering column before putting the sir coil into position and connecting the sir coil and horn/cruise electrical connectors. Secure wiring harness clips onto the bracket under the column before putting on steering column covers and Steering Wheel. Finish up by installing the inflatable restraint Steering Wheel module before turning on the sir system.
