How to replace the inner CV Boot and CV Joint of the axle shaft assembly on Chevrolet Corvette?

In order to replace the inner joint and seal of the axle assembly, drive shaft should be removed from the vehicle first. Start by covering a shop towel around axel shaft and set the wheel Drive Shaft to lie horizontally inside a bench vise. Use a side cutter and remove the large seal retaining clamp and small seal retaining clamp from the cv joint seal and dispose of it. Remove the seal from the joint outer race, put it at the back of the joint face, and then put the wheel Drive Shaft vertically in the bench vise with the inner joint facing upwards. Push the extra joint outer race towards the vise, removing the outer race retaining ring with a tiny flat-bladed screw-driver. Take down the outer race of the Axle Shaft, trapping any balls that roll out with the seal, and take the rest of the balls out of the cage and the pinout. Wash all parts using solvent and air dry. For the installation, use the j 42572 drive axle seal clamp pliers to crimp a new small seal retaining clamp onto the wheel Drive Shaft after fitting the seal and cage. Make sure that the inner race spline relief is facing to the Axle Shaft end before installing the inner race and snap ring. Mount the inner race balls into the wheel hubs, align cage lands with inner race ball tracks and install the cage along with adding grease from the service kit to the outer cage window and cage windows. Install the outer race retaining ring and balls in the right direction and have the large diameter end of seal in the outer race. Crimp the large seal retaining clamp using the j 42572 with the gap width specifications. Finally, apply grease inside the inner cv joint, check for proper functioning, then replace the wheel Drive Shaft back into the vehicle.

OEM Chevrolet Corvette CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 CV Boots found

View related parts

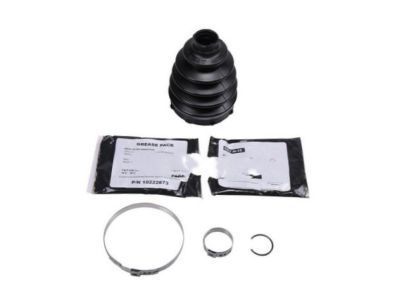

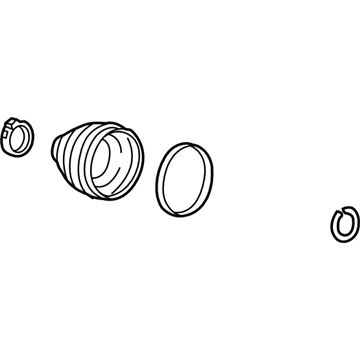

Chevrolet Corvette Outer Boot, Rear Part Number: 19301963
$108.46 MSRP: $172.20
You Save: $63.74 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Inner Boot, Rear Part Number: 19301960
$76.35 MSRP: $125.77
You Save: $49.42 (40%)
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Inner Boot, Rear Part Number: 19301962
$87.99 MSRP: $139.71
You Save: $51.72 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Outer Boot, Rear Part Number: 19301961
$73.35 MSRP: $120.84
You Save: $47.49 (40%)
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts

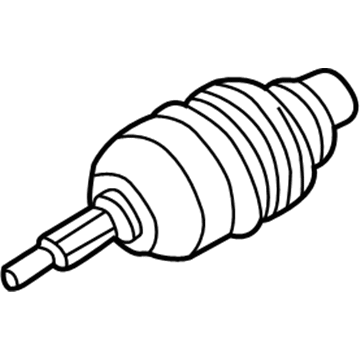

Chevrolet Corvette Outer Boot, Rear Part Number: 19153125
$66.04 MSRP: $103.44
You Save: $37.40 (37%)
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Corvette | 427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts

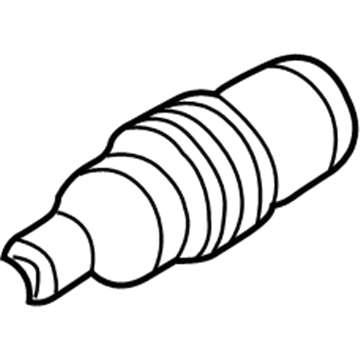

Chevrolet Corvette Inner Boot Part Number: 89047795
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2013 Chevrolet Corvette | 427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Outer Boot Part Number: 88955486
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2013 Chevrolet Corvette | 427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts

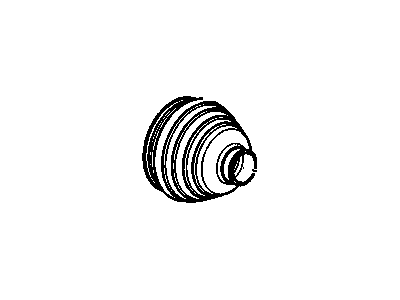

Chevrolet Corvette Inner Boot Part Number: 88952507
Product Specifications
- Other Name: CV Boot; Boot Kit, Rear Axle Universal Joint
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2004 Chevrolet Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Boot Kit Part Number: 88952506
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot; Outer Boot
- Position: Rear Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2004 Chevrolet Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Inner Boot, Rear Driver Side Part Number: 19181706
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Corvette | 427, ZR1 | 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Outer Boot, Rear Driver Side Part Number: 19181705
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Corvette | 427, ZR1 | 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Inner Boot, Rear Part Number: 19153124
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2013 Chevrolet Corvette | 427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS

Chevrolet Corvette CV Boot

Want to cut long-term maintenance and repair costs? Choose OEM CV Boot. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette CV Boot includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The CV Boot is an engineered protective covering of Chevrolet Corvette vehicles, which safeguards the Constant Velocity or CV joints that are critical in transmitting power from Chevrolet's transaxle to the wheels. This flexible rubber or plastic boot but contains the necessary lubricant for the CV joints and at the same time seals out any contaminants which will enhance its performance. Chevrolet Corvette over the years has incorporated number of forms of CV joints, outer ends it has the Rzeppa type while the inner ends it has the tripod or double offset. Really, the differences between these types are based on design and function: Outer joints work at larger angles compared to the inboard joints that should adapt to the changes in the shaft length when the suspension is in move. In this regard, it is important that the CV Boot receives constant check up since any harm on the boot results to a failure of the CV joint which affects the Chevrolet Corvette performance.

Chevrolet Corvette CV Boot Parts and Q&A

Boot Kit
88952506
Q: How to replace the inner CV Boot and CV Joint of the axle shaft assembly on Chevrolet Corvette?
A:
In order to replace the inner joint and seal of the axle assembly, Drive Shaft should be removed from the vehicle first. Start by covering a shop towel around axel shaft and set the wheel Drive Shaft to lie horizontally inside a bench vise. Use a side cutter and remove the large seal retaining clamp and small seal retaining clamp from the cv joint seal and dispose of it. Remove the seal from the joint outer race, put it at the back of the joint face, and then put the wheel Drive Shaft vertically in the bench vise with the inner joint facing upwards. Push the extra joint outer race towards the vise, removing the outer race retaining ring with a tiny flat-bladed screw-driver. Take down the outer race of the Axle Shaft, trapping any balls that roll out with the seal, and take the rest of the balls out of the cage and the pinout. Wash all parts using solvent and air dry. For the installation, use the j 42572 drive axle seal clamp pliers to crimp a new small seal retaining clamp onto the wheel Drive Shaft after fitting the seal and cage. Make sure that the inner race spline relief is facing to the Axle Shaft end before installing the inner race and snap ring. Mount the inner race balls into the wheel hubs, align cage lands with inner race ball tracks and install the cage along with adding grease from the service kit to the outer cage window and cage windows. Install the outer race retaining ring and balls in the right direction and have the large diameter end of seal in the outer race. Crimp the large seal retaining clamp using the j 42572 with the gap width specifications. Finally, apply grease inside the inner cv joint, check for proper functioning, then replace the wheel Drive Shaft back into the vehicle.
