How to Remove and Install the Air Bag Clockspring Assembly on Chevrolet Corvette?

To take away the air bag clock spring assembly / spiral cable, to begin with, disable the sir system. Next, take out the inflatable restraint Steering Wheel module, then the upper and lower shrouds. Then, remove the Steering Wheel and pry the column wire harness out of the harness straps. Pop off the retaining ring and remove the inflatable restraint Steering Wheel module coil from the Steering Shaft. For installation purposes, make sure the wheels are straight ahead and center the sir coil assembly if needed. Mount the existing sir coil assembly to the Steering Shaft assembly aligning its opening with the horn tower and the "locating bump" between the two tabs on the lock housing cover and sleeve assembly, then seat the sir coil assembly onto the Steering Shaft assembly. In case a new sir coil assembly is needed, put the pre-centered sir coil assembly to the Steering Shaft assembly, place it correctly, align the opening, remove the centering tab and dispose of it. Mount the retaining ring onto the Steering Shaft assembly, move the lower coil wire harness to follow the steering column, and reconnect the Steering Wheel column wire harness to the wire harness straps. Finally, re-installing the Steering Wheel, the upper and lower shrouds and the inflatable restraint Steering Wheel module and enable the sir system.

How to replace the Air Bag Clockspring in the Steering Wheel on Chevrolet Corvette?

In order to install the inflatable restraint Steering Wheel module coil, one would first need to disable the sir system and remove sir and the upper and lower shrouds the Steering Wheel off. Pull off the Steering Wheel column wire harness (Wire Harness) from the wire harness straps (Straps) and remove the retaining ring (Retaining Ring) in order to remove the air bag clock spring (Air Bag Clock Spring) from the Steering Shaft. After installation, two tighteners should be thoroughly lubricated with water-resistant silicon adhesive (water-resistant silicone adhesive). Then, the caps should be put back on the tighteners. Mount the installed air bag clock spring assembly (Air Bag Clock Spring Assembly) on the Steering Shaft assembly (Steering Shaft Assembly) aligning the opening with the horn tower and against locating bump on the two tabs on lock housing cover and sleeve assembly, then drive it onto the Steering Shaft assembly. If using a new air bag clock spring assembly (Air Bag Clock Spring Assembly), you will then attach the pre-centered unit to the Steering Shaft assembly align it similar and remove the centering tab before adding on the retaining ring (Retaining Ring) to the Steering Shaft assembly. Route the lower coil wire harness alongside the steering column; reconnect the Steering Wheel column wire harness (Wire Harness) to the wire harness straps (Straps), and reinstall the Steering Wheel and shrouds. Lastly, reinstall the sir system and turn on the sir system.

OEM Chevrolet Corvette Air Bag Clockspring

Steering Wheel Airbag Coil

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Air Bag Clocksprings found

View related parts

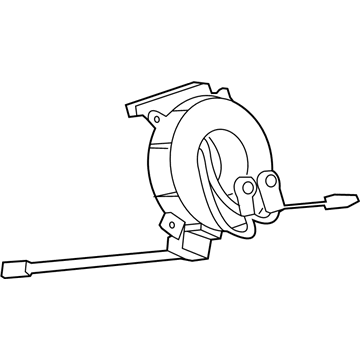

Chevrolet Corvette Clockspring Part Number: 84205928
$83.72 MSRP: $124.58
You Save: $40.86 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 23491040
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts

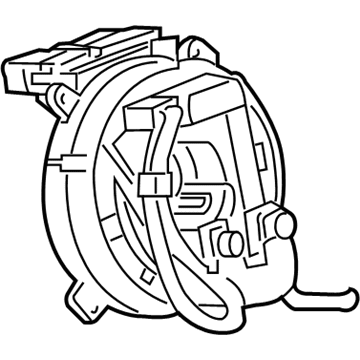

Chevrolet Corvette Clockspring Part Number: 22942867
$47.69 MSRP: $70.97
You Save: $23.28 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil, Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 20817699, 20810972, 22758271
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2016 Chevrolet Corvette | Stingray, Z06 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 86773961
$70.24 MSRP: $104.54
You Save: $34.30 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring
- Replaced by: 86507598
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2023 Chevrolet Corvette | Stingray, Z06 | 8 Cyl 5.5 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 86773960
$47.72 MSRP: $71.02
You Save: $23.30 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 84393467, 84966452, 84578696
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2023 Chevrolet Corvette | Stingray, Z06 | 8 Cyl 5.5 L GAS, 8 Cyl 6.2 L GAS
View related parts

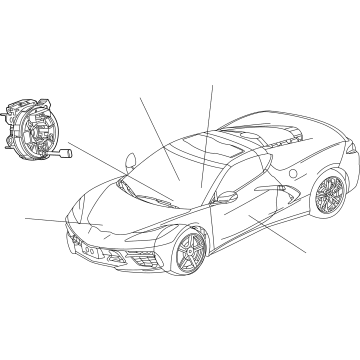

Chevrolet Corvette Clockspring Part Number: 85156407
$38.30 MSRP: $56.99
You Save: $18.69 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Coil, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2024 Chevrolet Corvette | E-Ray, Stingray, Z06 | 8 Cyl 5.5 L GAS, 8 Cyl 6.2 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L GAS
View related parts

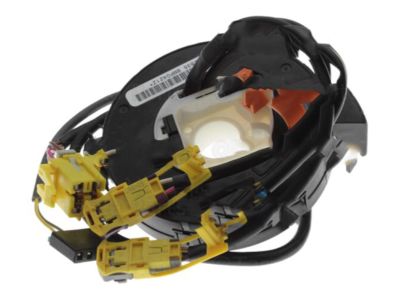

Chevrolet Corvette Clockspring Part Number: 89060632
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005 Chevrolet Corvette | Base | 8 Cyl 6.0 L GAS
View related parts
Chevrolet Corvette Coil Assembly Part Number: 26041005
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil; Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26053264
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996 Chevrolet Corvette | Base, Collector's Edition, Grand Sport, Indianapolis 500 Pace Car, ZR-1 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Air Bag Module Part Number: 26013854
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Assembly; Clockspring; Coil Kit, Inflatable Restraint System; Front Door Trim
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Chevrolet Corvette | 40th Anniversary Edition, Base, ZR-1 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 19153097
$212.65 MSRP: $317.87
You Save: $105.22 (34%)
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Chevrolet Corvette | 427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 26095710
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Z06 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 26087359
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1998 Chevrolet Corvette | Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 19153102
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chevrolet Corvette | 427 Limited Edition Z06, Base, Z06 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Clockspring Part Number: 19133742
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006 Chevrolet Corvette | Base, Z06 | 8 Cyl 6.0 L GAS, 8 Cyl 7.0 L GAS

Chevrolet Corvette Air Bag Clockspring

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Clockspring. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette Air Bag Clockspring includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

At GM, the part 10235957, Chevrolet Corvette Air Bag Clockspring is an important and essential element of the Supplemental Restraint System also referred commonly as air bag system. This linkage serves important purposes for timely inflation of airbags in the event of an accident thus improving safety of passengers most especially in the Chevrolet Corvette cars. High quality and performance are always associated with Chevrolet Corvette Air Bag Clockspring that can be adopted to the specified Corvette models, made of plastic or a rather strong metal-plastic alloy. The fact that the same system can be used across all Corvette models is something that allows it to meet current safety standards as it is used. Chevrolet Corvette is a luxurious sports car which has been in production for over 60 years; It established the need for Air Bag Clockspring in enhancing the safety aspects of the car. Through its engines and engineering, it offers vigorous performance on the road but at the same time, engulfs the principle of safety to the driver and commutator through methods like Air Bag Clockspring. Among all the components that can be used in the automobile industry, this one plays a very significant part in bolstering efficiency and safety thus keeping Chevrolet Corvette popular among car lovers. Thus the Corvette development goes on, and so does Chevrolet's dedication to innovation and to keeping its vehicles as safe as possible: Air Bag Clockspring will always be a symbol of that steadfast desire.

Chevrolet Corvette Air Bag Clockspring Parts and Q&A

Clockspring
26095710
Q: How to Remove and Install the Air Bag Clockspring Assembly on Chevrolet Corvette?
A:
To take away the air bag clock spring assembly / spiral cable, to begin with, disable the sir system. Next, take out the inflatable restraint Steering Wheel module, then the upper and lower shrouds. Then, remove the Steering Wheel and pry the column wire harness out of the harness straps. Pop off the retaining ring and remove the inflatable restraint Steering Wheel module coil from the Steering Shaft. For installation purposes, make sure the wheels are straight ahead and center the sir coil assembly if needed. Mount the existing sir coil assembly to the Steering Shaft assembly aligning its opening with the horn tower and the "locating bump" between the two tabs on the lock housing cover and sleeve assembly, then seat the sir coil assembly onto the Steering Shaft assembly. In case a new sir coil assembly is needed, put the pre-centered sir coil assembly to the Steering Shaft assembly, place it correctly, align the opening, remove the centering tab and dispose of it. Mount the retaining ring onto the Steering Shaft assembly, move the lower coil wire harness to follow the steering column, and reconnect the Steering Wheel column wire harness to the wire harness straps. Finally, re-installing the Steering Wheel, the upper and lower shrouds and the inflatable restraint Steering Wheel module and enable the sir system.
Clockspring
89060632
Q: How to replace the Air Bag Clockspring in the Steering Wheel on Chevrolet Corvette?
A:
In order to install the inflatable restraint Steering Wheel module coil, one would first need to disable the sir system and remove sir and the upper and lower shrouds the Steering Wheel off. Pull off the Steering Wheel column wire harness (Wire Harness) from the wire harness straps (Straps) and remove the retaining ring (Retaining Ring) in order to remove the air bag clock spring (Air Bag Clock Spring) from the Steering Shaft. After installation, two tighteners should be thoroughly lubricated with water-resistant silicon adhesive (water-resistant silicone adhesive). Then, the caps should be put back on the tighteners. Mount the installed air bag clock spring assembly (Air Bag Clock Spring Assembly) on the Steering Shaft assembly (Steering Shaft Assembly) aligning the opening with the horn tower and against locating bump on the two tabs on lock housing cover and sleeve assembly, then drive it onto the Steering Shaft assembly. If using a new air bag clock spring assembly (Air Bag Clock Spring Assembly), you will then attach the pre-centered unit to the Steering Shaft assembly align it similar and remove the centering tab before adding on the retaining ring (Retaining Ring) to the Steering Shaft assembly. Route the lower coil wire harness alongside the steering column; reconnect the Steering Wheel column wire harness (Wire Harness) to the wire harness straps (Straps), and reinstall the Steering Wheel and shrouds. Lastly, reinstall the sir system and turn on the sir system.
