How to service and repair the air cleaner fresh air hose on Chevrolet Cavalier?

The beginning of air cleaner fresh air duct/hose servicing and repair depends on the removal of three components: the air cleaner outlet splash shield, the lh headlamp assembly retaining screws and the lh headlamp assembly. First disconnect the electrical connectors from the lh headlamp assembly before removing the lf tire and wheel and both the upper and lower front air cleaner intake duct push in retainers. Service of the front air cleaner intake duct requires first removing the lf wheel house panel followed by the front air cleaner intake duct lower push in retainer and the front air cleaner intake duct through the headlamp assembly opening. Screw out the resonator rear push in retainer and upper attaching bolt before removing the resonator assembly through the wheel house opening. Insert the resonator assembly back through the wheel house opening making sure to tighten the resonator rear push in retainer and upper attaching bolt to 7 n.m (61 lb in). First insert the front air cleaner intake duct into the headlamp assembly opening and complete the installation with the front air cleaner intake duct lower push in retainer , lf wheel house panel and lf tire and wheel. Place the front air cleaner intake duct into its opening then install the upper push in retainer before reattaching electrical connectors to the lh headlamp and finishing the headlamp assembly installation. The headlamp assembly needs retaining screws which require a torque specification of 7 n.m (61 lb in) before reattaching the air cleaner outlet splash shield.

OEM Chevrolet Cavalier Air Hose

Air Inlet Duct

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

19 Air Hoses found

View related parts
Chevrolet Cavalier Air Inlet Duct Part Number: 12487661
Product Specifications
- Other Name: Air Intake Hose; Intake Coupling
- Position: Front
- Replaces: 12487582
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Chevrolet Cavalier | Base, LS, LS Sport, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Cavalier Air Inlet Duct Part Number: 25098589
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Intake Hose; Intake Coupling; Inlet Duct
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1994 Chevrolet Cavalier | RS, Z24 | 6 Cyl 3.1 L GAS
View related parts
Chevrolet Cavalier Air Inlet Duct Part Number: 25098494
Product Specifications
- Other Name: Duct, Air Cleaner Air Intake; Air Intake Hose; Intake Coupling; Resonator; Duct, Air Cleaner Intake
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1994 Chevrolet Cavalier | RS, VL | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Air Duct Part Number: 24575436
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer; Air Intake Hose; Intake Coupling; Air Outlet Duct
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Cavalier | LS, LS Sport, Z24 | 4 Cyl 2.4 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 24574931
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chevrolet Cavalier | Base, LS, RS | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS
View related parts

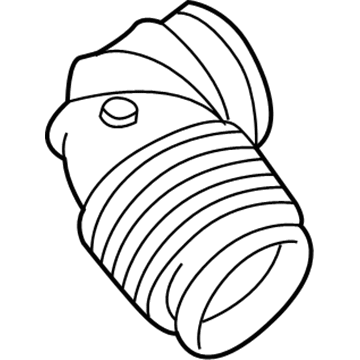

Chevrolet Cavalier Air Duct, Rear Part Number: 24574647
Product Specifications
- Other Name: Duct-Rear Air Intake; Air Intake Hose; Intake Coupling; Duct, Air Cleaner And Silencer
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet Cavalier | LS, Z24 | 4 Cyl 2.3 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 24574643
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chevrolet Cavalier | Base, LS, RS | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 22712134
Product Specifications
- Other Name: Duct, Air Cleaner; Duct, Air Cleaner And Silencer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Chevrolet Cavalier | Base, LS, LS Sport | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Hot Air Tube Part Number: 15575224
Product Specifications
- Other Name: Tube, Air Cleaner Intake; Tube; Tube, Air Cleaner Air Intake
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1986 Chevrolet Cavalier | Base, CL, CS, RS, Type-10, Z24 | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Chevrolet Cavalier Air Duct Part Number: 14102641
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Inlet Duct; Air Outlet Duct; Rear Duct
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987 Chevrolet Cavalier | Base, CS, RS, Z24 | 6 Cyl 2.8 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 14076426
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer; Duct
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1989 Chevrolet Cavalier | Base, CS, RS, VL | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Cavalier Air Duct Part Number: 14072209
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Inlet Duct
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1986 Chevrolet Cavalier | Base, CL, CS, RS, Type-10 | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 12565140
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002 Chevrolet Cavalier | Base, LS, LS Sport | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Air Inlet Duct Part Number: 10156044
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Intake Hose; Intake Coupling
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Cavalier | Base, RS, VL | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Air Inlet Duct Part Number: 10156042
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Intake Hose; Intake Coupling
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Cavalier | Base, RS, VL | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Duct Part Number: 10156040
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer; Air Intake Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1994 Chevrolet Cavalier | RS, VL | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Air Outlet Duct Part Number: 10103592
Product Specifications
- Other Name: Duct, Air Cleaner And Silencer; Air Intake Hose; Intake Coupling; Air Inlet Duct Extension; Duct
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Cavalier | Base, RS, VL | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Cavalier Intake Duct Part Number: 10068516
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Intake Hose; Intake Coupling; Air Inlet Duct
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1989 Chevrolet Cavalier | Base, RS, VL | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Cavalier Air Duct Part Number: 10065493
Product Specifications
- Other Name: Duct, Air Cleaner Intake; Air Intake Hose; Intake Coupling; Air Inlet Duct; Inlet Duct; Duct
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1991 Chevrolet Cavalier | Base, RS, Z24 | 6 Cyl 2.8 L GAS, 6 Cyl 3.1 L GAS

Chevrolet Cavalier Air Hose

Want to cut long-term maintenance and repair costs? Choose OEM Air Hose. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Cavalier parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Cavalier Air Hose includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Cavalier Air Hose Parts and Q&A

Air Inlet Duct
12487661
Q: How to service and repair the air cleaner fresh air hose on Chevrolet Cavalier?
A:
The beginning of air cleaner fresh air duct/hose servicing and repair depends on the removal of three components: the air cleaner outlet splash shield, the lh headlamp assembly retaining screws and the lh headlamp assembly. First disconnect the electrical connectors from the lh headlamp assembly before removing the lf tire and wheel and both the upper and lower front air cleaner intake duct push in retainers. Service of the front air cleaner intake duct requires first removing the lf wheel house panel followed by the front air cleaner intake duct lower push in retainer and the front air cleaner intake duct through the headlamp assembly opening. Screw out the resonator rear push in retainer and upper attaching bolt before removing the resonator assembly through the wheel house opening. Insert the resonator assembly back through the wheel house opening making sure to tighten the resonator rear push in retainer and upper attaching bolt to 7 n.m (61 lb in). First insert the front air cleaner intake duct into the headlamp assembly opening and complete the installation with the front air cleaner intake duct lower push in retainer , lf wheel house panel and lf tire and wheel. Place the front air cleaner intake duct into its opening then install the upper push in retainer before reattaching electrical connectors to the lh headlamp and finishing the headlamp assembly installation. The headlamp assembly needs retaining screws which require a torque specification of 7 n.m (61 lb in) before reattaching the air cleaner outlet splash shield.
