Other Name: Emblem, Radiator Grille And Front End Ornamentation
Position: Front
Warranty: This genuine part is guaranteed by GM's
factory warranty.
Fits the following Vehicles:
1986 Chevrolet Camaro | Berlinetta | 6 Cyl 2.8 L GAS, 8 Cyl 5.0 L GAS
| Page 1 of 3 |Next >
1-20 of 55 Results

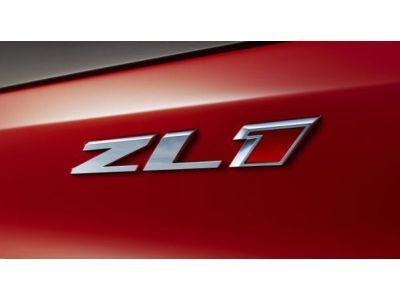

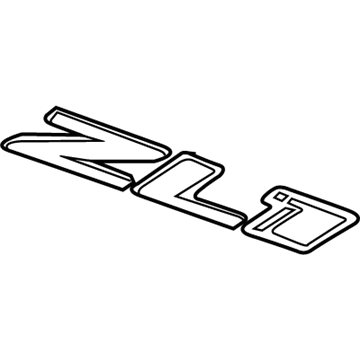

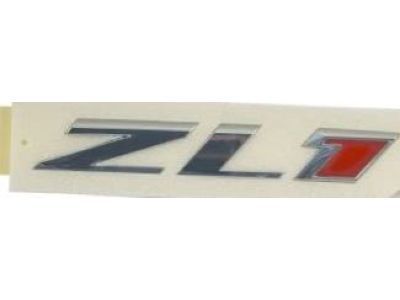

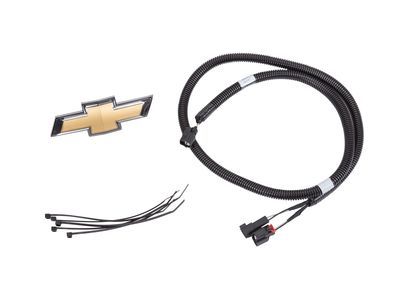

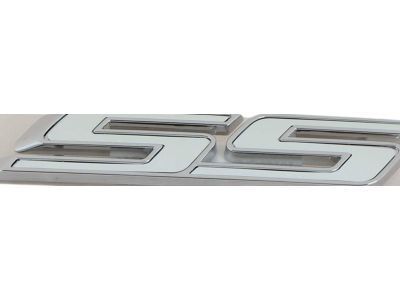

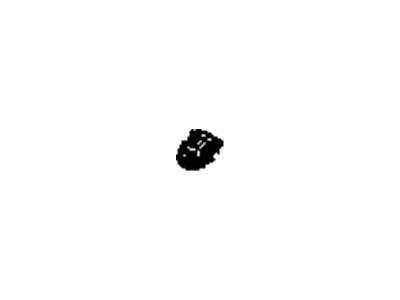

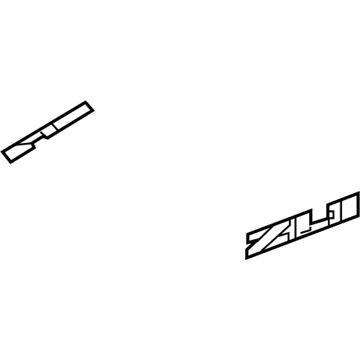

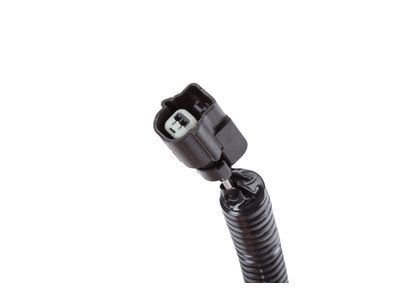

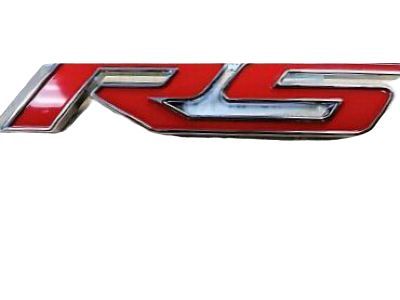

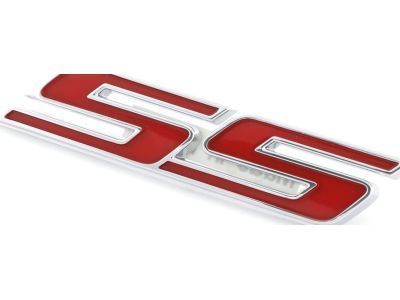

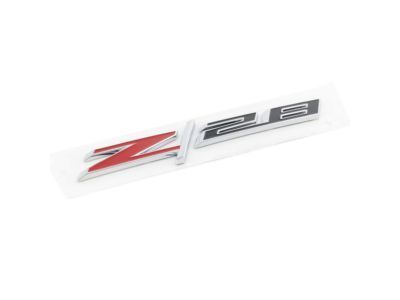

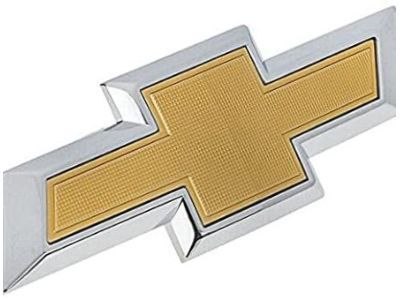

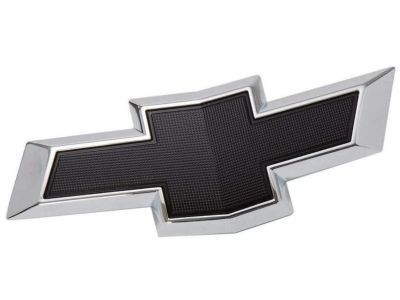

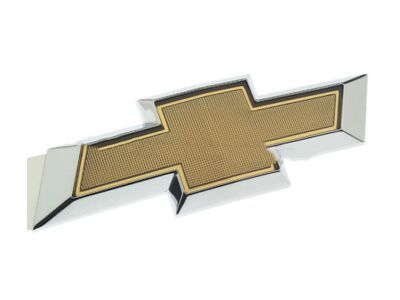

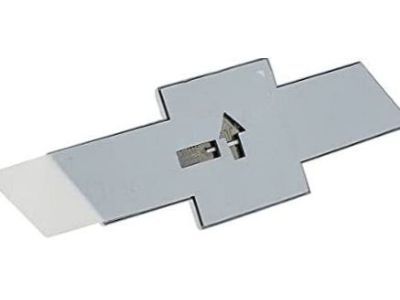

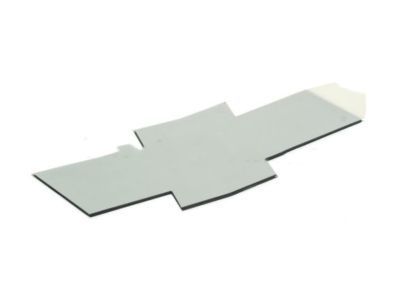

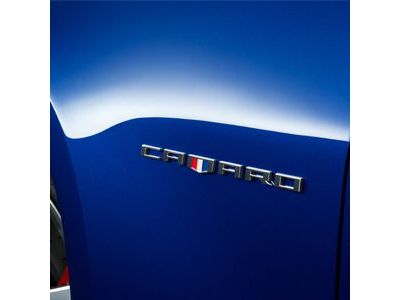

Chevrolet Camaro Emblem
Want to cut long-term maintenance and repair costs? Choose OEM Emblem. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Camaro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Camaro Emblem includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
Q: How to replace the front bumper fascia emblem on Chevrolet Camaro?
A:
To replace the front bumper fascia emblem, first note the position of the emblem/nameplate with a strip of masking tape. Use the Heat Gun (J 25070) and apply heat around the emblem/nameplate in circular motion for approximately 30 seconds. Gently pry off the emblem/nameplate from the fascia without damaging, using a plastic flat-bladed extraction tool. And must keep and clean the fascia and wipe off with soapy water and dry it off and also rid it of any adhesive too by oil-free naptha or alcohol. When going to install the new emblem/nameplate, do not touch the adhesive backing, remove the backing of the emblem/nameplate, align the emblem/nameplate working along the tape guideline, press hard so the emblem/nameplate adheres to the place.

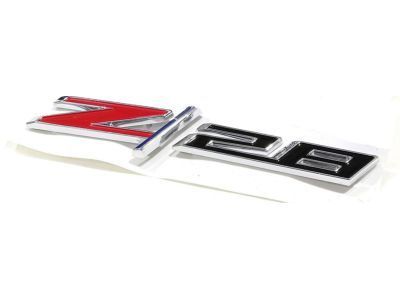

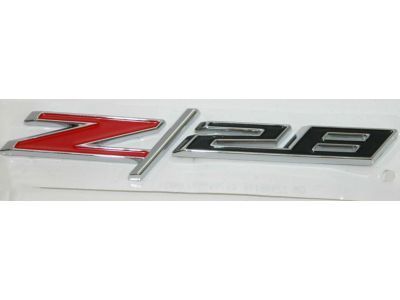

Q: How to Service and Repair a Body Emblem on the Z28 Rear End Finish Panel on Chevrolet Camaro?
A:
Before working on the body emblem mark its position with a strip of masking tape. Position the emblem/nameplate with a tape strip. Heat the emblem using J 25070 Heat Gun (J 25070) in rotative movements for half a minute. Use a plastic flat tool to safely pull off the emblem/nameplate from the rear bumper fascia. Wash the rear fascia with soap then dry it fully before eliminating tack sticks with neat oil-free solvent. Keep the adhesive side of the emblem/nameplate free from contact during application. Mark 164.0 mm (6.46 in) from tail lamp outer edge to emblem edge and 16.0 mm (0.63 in) from bottom bumper edge to bottom emblem edge. After removing the emblem/nozzle backing apply it to these locations. Seal the emblem/nameplate by connecting it to the taped guideline.
