OEM Chevrolet Aveo Steering Knuckle

Chevrolet Aveo Steering Knuckle Parts and Q&A

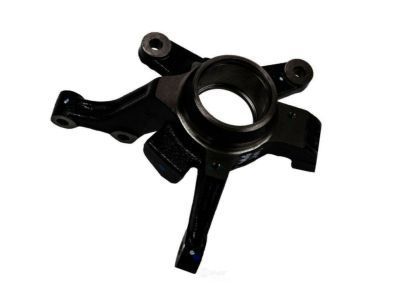

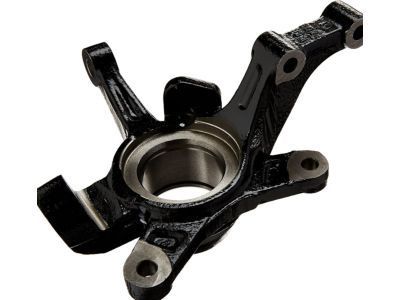

• Knuckle
  96870493
  Q: How to service and repair the steering knuckle, wheel bearing, wheel hub, and wheel seal on Chevrolet Aveo?

  A:

  Start the process of steering knuckle service by lifting up the vehicle while providing maintained support. Service professionals should remove the hub assembly which consists of wheel hub and bearing along with the knuckle and brake shield. Position the knuckle assembly inside a vise for holding. Use extreme pressure lubricant j-23444-a from the front hub service set j-37105-c (CH-46560) (DW-340-040) to treat threaded rod j-36661-2 (CH-46560-04) at the front hub service set j-37105-c (CH-46560) (DW-340-040). Push the rod through ball bearing j-217801 (CH-46560-06) along with support bridge j-37105-1 (CH-46560-01) (DW340-040-1) into the hub and wheel hub replacer adapter dt-47540 (DW340-120-01). Install either the rod j-36661-2 (CH-46560-04) from the front hub service set ch-46560 through the support bridge j-37105-1 (CH-46560-01) (DW340-040-1) the wheel bearing and wheel hub replacer adapter dt-47540 (DW340-120-01). Either the Control Arm Bushing set j 21474-01 or the front hub service set ch-46560 can be utilized to secure the nut j-21474-4 (CH-46560-05) to rod j-36661-2 ( The split plate J 22912-B with a hydraulic press should be used to extract the bearing race from the hub if needed before removing the retaining ring from the knuckle. Use rod J-36661-2 (CH-46560-04) to pass through ball bearing j-217801 (CH-46560-06) and support bridge j-37105-1 (CH-46560-01) (DW340-040-1) and wheel bearing and wheel bearing remover adapter dt-47541 (DW340-120-02). Insert the nut j-21474-4 (CH-46560-05) onto the rod j-36661-2 (CH-46560-04) to remove the wheel bearing from the knuckle and discard the bearing afterward. Proper cleaning of the knuckle bore happens before assembly operations begin. After securing the steering knuckle in a vise place the rod j-36661-2 (CH-46560-04) through the ball bearing j-217801 (CH-46560-06) together with the wheel bearing installer adapter dt-47543 (DW-340-120-04) and the new wheel bearing followed by the wheel bearing installer adapter dt-47542 (DW340-120-03). Drive the nut j-21474-4 (CH-46560-05) onto rod j-36661-2 (CH-46560-04) for wheel bearing attachment to the knuckle then secure the retaining ring. Insert rod j-36661-2 (CH-46560-04) through wheel bearing installer adapter dt-47542 (DW340-120-03) while passing through hub and wheel hub replacer adapter dt-47540 (DW340-120-01) until it reaches ball bearing j-217801 (CH-46560-06). Install the rod j-36661-2 (CH-46560-04) with its nut and secure the wheel bearing to the hub. Make sure the hub spins effortlessly. To finish the procedure lower the vehicle into place after installing together the wheel hub and bearing and knuckle assembly with the brake shield.

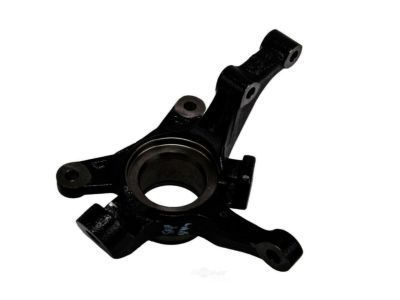

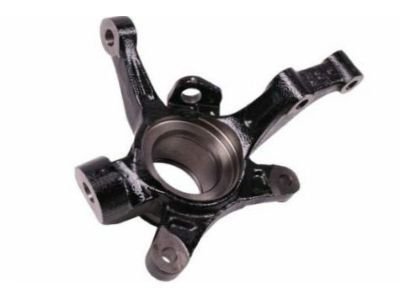

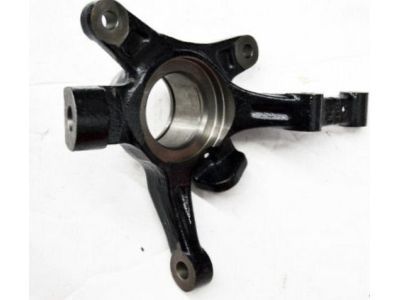

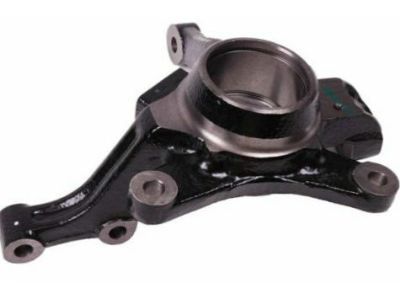

• Knuckle
  96870491
  Q: How to replace the Steering Knuckle, Wheel Bearing, Wheel Hub, and Wheel Seal on Chevrolet Aveo?

  A:

  To replace the wheel hub, bearing, knuckle, and seal, first lift and support the vehicle. Remove the wheel hub, bearing, knuckle, and brake shield as a group. Place the knuckle assembly into a vise and then remove the brake shield. Using the j-37105-c - front hub service set, spread lubricant on the j-36661-2 - (CH-46560-04) rod. Fit the j-36661-2 - (CH-46560-04) rod through the 217801 - (CH-46560-06) bearing, the j-37105-1 - (CH-46560-01) bridge, the hub and the dt fit the j-21474-4 - (CH-46560-05) nut to the j-36661-2 - (CH-46560-04) rod and take the wheel hub off the wheel bearing. Use the j 22912-b - split plate and hydraulic press if necessary, in order to remove the bearing race from the hub, and remove retaining ring from the knuckle afterwards. Place the j-36661-2 - (CH-46560-04) rod into the 217801 - (CH-46560-06) bearing, the j-37105-1 - (CH-46560-01) bridge, the wheel bearing, and the mount the j-21474-4 - (CH-46560-05) nut to the j-36661-2 - (CH- 46560-04) rod and remove the wheel bearings whilst discarding the old one and cleaning the bore of the knuckle. For assembly, mount the steering knuckle in a vise and put the j-36661-2 - (CH-46560-04) rod through the dt-47542 - (DW340-120-03) adapter, new wheel bearing, dt-47543 - (D Fit the J-21474-4 - (CH-46560-05) nut to the j-36661-2 - (CH-46560-04) rod and fit the wheel bearing to knuckle and followed by retaining ring. Install the brake shield, followed by passing through the dt-47541 - (DW340-120-02) adapter, the hub, the dt-47540 - (DW340-120-01) adapter and the 217801 - (CH-46560 Attach the nut to the J-36661-2 - (CH-46560-04) rod, attach the hub to the wheel bearing and make sure the hub moves freely before replacing the wheel hub, bearing, knuckle and brake shield as an assembly and finally lower the vehicle.
