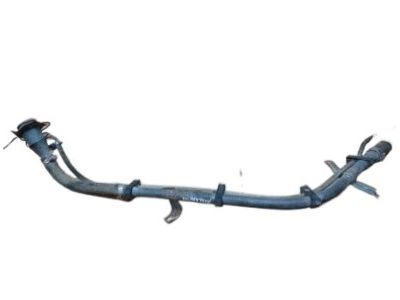

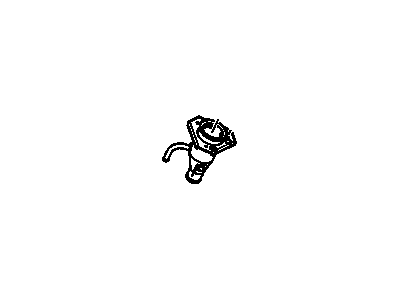

OEM Chevrolet Avalanche 1500 Fuel Filler Hose

Chevrolet Avalanche 1500 Fuel Filler Hose Parts and Q&A

• Hose
  15749596
  Q: How to service and repair the fuel filler hose for a single tank on Chevrolet Avalanche 1500?

  A:

  First for single tank Fuel Filler Hose repairs start by cleaning the fuel pipe connections along with their surrounding areas to avoid any contaminations. Start the procedure by taking off the fuel fill cap with the spare tire stowage lock cylinder and spare tire. Secure the vehicle while elevating it before unfastening screws that hold the Fuel Tank filler housing to fill pipe. The rear axle vent hose clip must be opened at the fill pipe for you to detach the hose. Begin by unbolting the fuel fill pipe ground strap and moving on to loosen both clamp attachments between the vent hose and Fuel Tank as well as the fuel fill pipe and Fuel Tank. The instructions state to dispose the fuel fill pipe bracket bolt before removing both components by separating the fuel fill pipe from the Fuel Tank while disengaging the bracket from the frame. Prevent contaminant entry into the Fuel Tank by placing a cap on its open end. Start by uncapping the Fuel Tank opening then install the fuel fill pipe and vent hose to the Fuel Tank while securing the fuel fill pipe bracket to the frame before you install the fuel fill pipe bracket bolt and secure it to 12 n.m (106 lb in). Following Fuel Tank clamp tightening to 2.5 n.m (22 lb in), install the fuel fill pipe ground strap bolt and tighten it to 9 n.m (80 lb in). Reposition the rear axle vent hose clip to the fill pipe before lowering the vehicle while securing Fuel Tank fill pipe screws with 2.3 n.m torque. End the repair process by putting back the spare tire followed by the spare tire stowage lock cylinder and fuel fill cap.
• Upper Hose
  15124940
  Q: How to replace the Fuel Filler Hose in a single tank system on Chevrolet Avalanche 1500?

  A:

  The first step in replacing the Fuel Filler Hose of single tank system requires cleaning both fuel connections and neighboring areas to prevent contaminants from entering followed by fuel fill cap removal. Start by removing the torx(r) screws and retainer which hold the Fuel Tank filler housing to the body while also taking out any spare tire stowage lock cylinder or spare tire that exists. Untighten and pull out screws which join the Fuel Tank filler housing to the Fuel Tank fill pipe. Rise the vehicle while supporting it before you unclip and remove the vent hose at the fill pipe. Begin by disconnection of the air suspension hose at the fill pipe and continuing with removal of the ground wire harness bolt, ground wire, and fill pipe ground strap. First disconnect the quick connect fitting of the vent hose at the Fuel Tank while loosening the fuel fill pipe clamp before you remove the fuel fill pipe bracket bolts. Remove the fuel fill pipe hose from the Fuel Tank before taking out both the fuel fill pipe and vent hose while applying a cap to the open Fuel Tank end to stop contamination. Basically for installation users need to uncapture the Fuel Tank opening to join the fuel fill pipe hose to the Fuel Tank followed by installing the fuel fill pipe bracket bolts and tightening them to 12 n.m (106 lb in). Install the fuel fill pipe hose by tightening the clamp to 2.5 n.m (22 lb in) and attach the vent hose quick connect fitting to the tank. Attach the fill pipe ground strap with its ground wire while tightening the ground wire harness bolt to 9 n.m (80 lb in). You should first reestablish the air suspension hose connection to the fill pipe before installing the vent hose to its clip then securing the clip at the fill pipe. The technician should first lower the vehicle before securely attaching the Fuel Tank filler housing to Fuel Tank fill pipe screws that require tightening to 2.3 n.m (20 lb in). Next, install the torx(r) screws while securing the retainer between the Fuel Tank filler housing and body with a torque of 2.3 n.m (20 lb in). Reinstall the spare tire along with the stowage lock cylinder but replace the Fuel Tank filler housing with body torx(r) screws and retainer before putting on the fuel fill cap.
