How to replace the ABS Control Module on Cadillac STS?

Positive Battery Cable disconnect should be done in the off mode to stop various dtcs from triggering while working on the 2005 cadillac sts ABS Control Module. Allow the ignition to remain off for at least 2 minutes until high-speed lan control modules have switched off. The first step includes disconnecting the negative Battery Cable followed by vehicle lift and support. This procedure should end with removal of the air deflector shield and right front wheelhouse liner as long as the washer solvent container remains secure with its bracket. Start by cleaning the space surrounding the ABS Control Module before using a tool to disconnect its electrical connector which requires pressing the retainer and turning the connector tab forward. The examiner must disconnect the four screws holding the ABS Control Module to the bpmv before separating the devices and identifying that a faulty ABS Control Module requires replacement. Installation requires bpmv seal surface cleaning followed by securing the internal pump motor connector into the new ABS Control Module and attaching the ABS Control Module to the bpmv using four screws while tightening them sequentially in 5 nm torque (44 lb in). Before finishing installation replace the washer solvent container bracket, then put the wheelhouse liner and air deflector shield back together while completing the connection of the ABS Control Module electrical connector and locking the connector tab. Complete programming of the new ABS Control Module needs to be done before performing the diagnostic system check - vehicle. Afterward lower your vehicle and re-establish the negative Battery Cable.

OEM Cadillac STS ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 ABS Control Modules found

View related parts

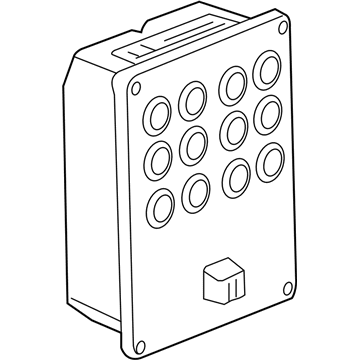

Cadillac STS Control Module Part Number: 88964161
$706.99 MSRP: $1122.49
You Save: $415.50 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Kit, Electronic Brake & Traction Control; ABS Control Module; ABS Control Unit; Module Kit, Electronic Brake Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

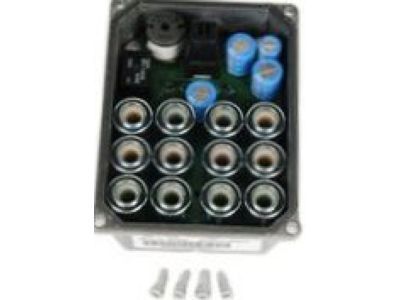

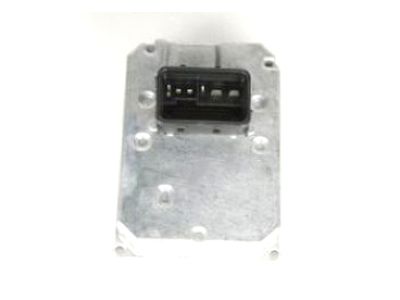

Cadillac STS Control Module Part Number: 89060336
Product Specifications
- Other Name: Module Kit, Electronic Brake & Traction Control; ABS Control Module; ABS Control Unit; Module Kit, Electronic Brake Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

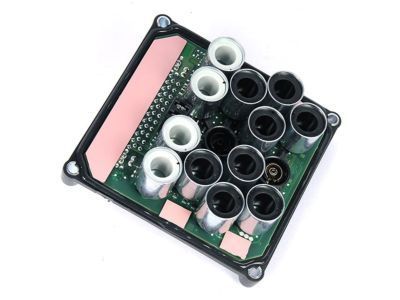

Cadillac STS Control Module Part Number: 25914292
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module; ABS Control Unit
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

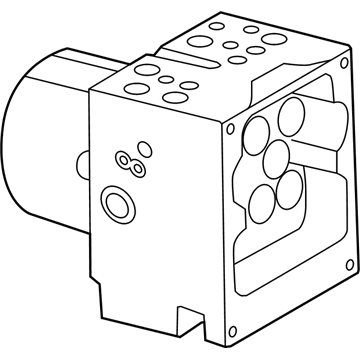

Cadillac STS Control Valve Part Number: 15298281
Product Specifications
- Other Name: Valve, Electronic Brake Control; ABS Control Module; Modulator Valve; Modulator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2011 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Control Module Part Number: 20803609
$210.31 MSRP: $377.24
You Save: $166.93 (45%)
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module; ABS Control Unit
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Cadillac STS | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac STS ABS Control Module

Want to cut long-term maintenance and repair costs? Choose OEM ABS Control Module. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac STS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac STS ABS Control Module includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

ABS Control Module is part of the anti-lock braking system that involves the Cadillac STS car model and is famous for its efficiency and operability of models of Cadillac STS. This top-of-the-line module has the critical role of enabling reductions in loss of wheel grip during sudden and hard braking thus increasing the control during an emergency. The Cadillac STS depends on an ABS Control Module that uses features such as wheel speed sensors, valves and a hydraulic pump coupled with an Electro Control Unit (ECU) to control he pressure of the brakes on the wheels. This helps in attaining a maximum braking force which is very essential especially during the poorly road conditions. The Cadillac STS has grown to incorporate the ESC and traction control that also adjust the handling depending on the need to apply the brakes to particular wheels. They can summarise that ABS Control Module plays important role in present day vehicular safety. This module is compatible with various STS models apart from its ability to shortening the stopping distances on different types of surfaces it also caters for the challenge of each driving situation. The ABS Control Module is exceptional in the Cadillac production and in the market because of additional services such as the lane change warning and blind zone alert especially in Cadillacs manufactured earlier 2012. Therefore, the Cadillac STS continues to be an innovative and stylish luxury sedan with the ABS Control Module as evidence of Cadillac's devotion to safety and the efficient operation of its vehicles.

Cadillac STS ABS Control Module Parts and Q&A

Control Module
88964161
Q: How to replace the ABS Control Module on Cadillac STS?
A:
Positive Battery Cable disconnect should be done in the off mode to stop various dtcs from triggering while working on the 2005 cadillac sts ABS Control Module. Allow the ignition to remain off for at least 2 minutes until high-speed lan control modules have switched off. The first step includes disconnecting the negative Battery Cable followed by vehicle lift and support. This procedure should end with removal of the air deflector shield and right front wheelhouse liner as long as the washer solvent container remains secure with its bracket. Start by cleaning the space surrounding the ABS Control Module before using a tool to disconnect its electrical connector which requires pressing the retainer and turning the connector tab forward. The examiner must disconnect the four screws holding the ABS Control Module to the bpmv before separating the devices and identifying that a faulty ABS Control Module requires replacement. Installation requires bpmv seal surface cleaning followed by securing the internal pump motor connector into the new ABS Control Module and attaching the ABS Control Module to the bpmv using four screws while tightening them sequentially in 5 nm torque (44 lb in). Before finishing installation replace the washer solvent container bracket, then put the wheelhouse liner and air deflector shield back together while completing the connection of the ABS Control Module electrical connector and locking the connector tab. Complete programming of the new ABS Control Module needs to be done before performing the diagnostic system check - vehicle. Afterward lower your vehicle and re-establish the negative Battery Cable.
