How to replace the LH exhaust heat shield on the LY7 gas engine on Cadillac SRX?

The first step to replace a left exhaust manifold heat shield for the LY7 gas engine V6 3.6L SFI (6 Cylinder, 3.6L, SFI, V6) requires installation of the Steering Column Anti-Rotation Pin (J 42640) into the steering column. The first step involves disconnecting the exhaust manifold heat shield bolts while elevating the vehicle through proper measures. The procedure starts with extracting the lower exhaust manifold heat shield bolt before disconnecting the center intermediate shaft from the lower intermediate shaft to access the shield for removal. You need to remove the exhaust manifold heat shield followed by additional removal of upper and lower exhaust manifold heat shield insulators from the oil level indicator tube and exhaust gasket when required. When installing the exhaust manifold heat shield start by setting the lower insulator on top of the oil level indicator along with the exhaust gasket before moving on to placing the upper insulator on the oil level indicator tube. Fit the exhaust manifold heat shield after you fasten down the lower heat shield bolt. First lower the vehicle and establish the upper exhaust manifold heat shield bolts before tightening them to 10 N.m (89 lb in). The technician should raise the vehicle while tightening both the lower exhaust manifold heat shield bolt and the exhaust manifold heat shield bolts with a torque of 10 N.m (89 lb in). One must finish the procedure by reconnecting the center intermediate shaft to the lower intermediate shaft, lowering the vehicle, then removing the Steering Column Anti-Rotation Pin (J 42640).

OEM Cadillac SRX Exhaust Heat Shield

Heat Shield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Exhaust Heat Shields found

View related parts

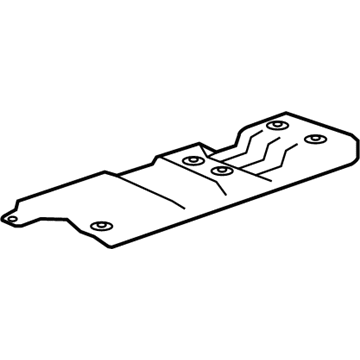

Cadillac SRX Heat Shield Part Number: 20907416
$4.09 MSRP: $6.09
You Save: $2.00 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield Assembly-Exhaust Heat (At Dash Panel); Exhaust Heat Shield; Shield, Exhaust Pipe
- Replaces: 25893699
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

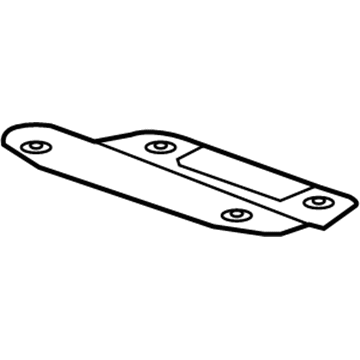

Cadillac SRX Heat Shield, Rear Part Number: 20907415
$37.59 MSRP: $58.84
You Save: $21.25 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield Assembly-Exhaust Rear Muffler Heat; Exhaust Heat Shield; Shield, Exhaust Tail Pipe
- Position: Rear
- Replaces: 20782611
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

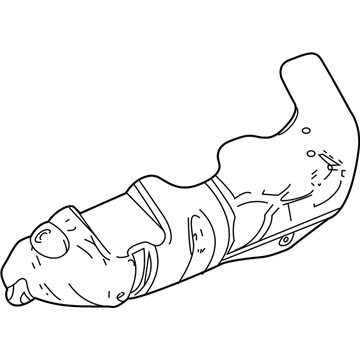

Cadillac SRX Heat Shield, Driver Side Part Number: 12791725
$27.43 MSRP: $53.25
You Save: $25.82 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Performance, Premium | 6 Cyl 2.8 L GAS
View related parts
Cadillac SRX Heat Shield, Passenger Side Part Number: 55564474
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Performance, Premium | 6 Cyl 2.8 L GAS
View related parts

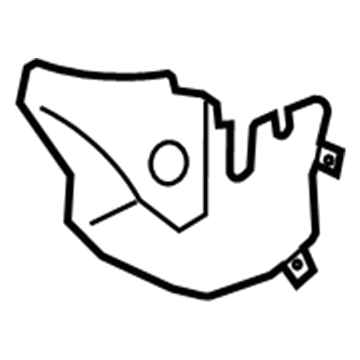

Cadillac SRX Heat Shield Part Number: 22817996
Product Specifications
- Other Name: Shield, Brake Master Cylinder And Pedal Shaft; Exhaust Heat Shield
- Replaces: 25885389
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Performance, Premium | 6 Cyl 2.8 L GAS
View related parts
Cadillac SRX Heat Shield Part Number: 12617267
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Replaces: 12580707
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Heat Shield, Driver Side Part Number: 12607338
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Driver Side
- Replaces: 12567838
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Heat Shield Part Number: 12580706
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Heat Shield, Passenger Side Part Number: 12576372
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS

Cadillac SRX Exhaust Heat Shield

Want to cut long-term maintenance and repair costs? Choose OEM Exhaust Heat Shield. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Exhaust Heat Shield includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

It plays a critical role in the safety and functionality of Cadillac's mid-size luxury SUV known as SRX; this is why Cadillac has ensured that it comes with an efficient and high quality Cadillac SRX Exhaust Heat Shield. Established to regulate head produced heat in the system, the Exhaust Heat Shield essentially thermally isolates the exhaust thus enabling the gases to discharge faster and hence improving the exhaust cycle efficiency. This not only brings the intake temperature down but also has a side effect of boosting power which makes Cadillac SRX a class of its own. The car part Exhaust Heat Shield specially designed for SRX series including the first generation which is 2003-2009, and the second generation 2010 to 2016, in order to provide durable and proper heat safeguarding of sensitive parts. In detail, Cadillac SRX Exhaust Heat Shield lowers under-hood temperatures to nearly half; therefore, contributing to increased efficiency and safety. It is requisite to maintain this part of firearm because shield that does not work properly may cause some problems. Cadillac SRX model a vehicle with impressive design and advanced facilities improve in any way from the addition of the Exhaust Heat Shield, an automotive part for specific exhaust pipes and mufflers. It has been noted that the Cadillac SRX Exhaust Heat Shield enhances the performance factor while at the same time enhancing the safety features, and such a component can be appreciated in the context of Cadillac's reliability in producing top-notch products. In conclusion, one can pinpoint that Cadillac SRX and its Exhaust Heat Shield are two products that show optimum strength, status, as well as novelty.

Cadillac SRX Exhaust Heat Shield Parts and Q&A

Heat Shield
12617267
Q: How to replace the LH exhaust heat shield on the LY7 gas engine on Cadillac SRX?
A:
The first step to replace a left exhaust manifold heat shield for the LY7 gas engine V6 3.6L SFI (6 Cylinder, 3.6L, SFI, V6) requires installation of the Steering Column Anti-Rotation Pin (J 42640) into the steering column. The first step involves disconnecting the exhaust manifold heat shield bolts while elevating the vehicle through proper measures. The procedure starts with extracting the lower exhaust manifold heat shield bolt before disconnecting the center intermediate shaft from the lower intermediate shaft to access the shield for removal. You need to remove the exhaust manifold heat shield followed by additional removal of upper and lower exhaust manifold heat shield insulators from the oil level indicator tube and exhaust gasket when required. When installing the exhaust manifold heat shield start by setting the lower insulator on top of the oil level indicator along with the exhaust gasket before moving on to placing the upper insulator on the oil level indicator tube. Fit the exhaust manifold heat shield after you fasten down the lower heat shield bolt. First lower the vehicle and establish the upper exhaust manifold heat shield bolts before tightening them to 10 N.m (89 lb in). The technician should raise the vehicle while tightening both the lower exhaust manifold heat shield bolt and the exhaust manifold heat shield bolts with a torque of 10 N.m (89 lb in). One must finish the procedure by reconnecting the center intermediate shaft to the lower intermediate shaft, lowering the vehicle, then removing the Steering Column Anti-Rotation Pin (J 42640).
