How to replace the Engine Control Module (ECM) on Cadillac SRX?

The first step to replace the Engine Control Module (ECM) requires verifying that the ignition is off to avoid component damage followed by checking the main relay circuit voltage at the ecm Fuse with a dvom. First disconnect the negative Battery Cable then take off the ecm Fuse and tcm/ipc Fuse and ecm/tcm Fuse that are located inside the underhood Fuse block. Move on to the upper ecm electrical connector replacement by unlocking it with lever pressure and turning the clamp lever and sliding the lock. The pins must stay away from contact to stop electrostatic discharge from damaging the system. After unlocking the lower ecm connector you can remove it while you detach the redundant ground wire and bolt from the ecm before you remove the ecm bolts and ecm itself. For bracket replacement of the ecm eliminate the electrical connector bracket and bolt first and then the ground wire and bolt followed by the wire harness retainer and bolt on the ecm bracket before taking out the ecm bracket bolts and bracket itself. Begin the installation process by attaching the new ecm bracket securely with its bolts while tightening the bracket bolt to 10 n.m (89 lb in) but the remainder of the bolts to 23 n.m (17 lb ft). Begin by bolting down the wire harness retainer and bolt while tightening it to 23 n.m (17 lb ft) before moving onto installing the electrical connector bracket and bolt at 10 n.m (89 lb in) as well as the wiring harness ground wire and bolt which should be bolted at 10 n.m (89 lb in). First install the ecm along with its bolts while tightening them to 10 n.m (89 lb in) before securing the redundant ground wire with a bolt at 5 n.m (44 lb in). The reconnect process includes joining the lower and upper ecm connectors while you install the ecm/tcm and tcm/ipc and ecm fuses into the underhood Fuse block. Follow the protocol by connecting the battery negative cable then program the ecm while performing an idle learn procedure before using the scan tool to clear all stored dtcs.

OEM Cadillac SRX Engine Control Module

Engine Control Computer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Engine Control Modules found

View related parts
Cadillac SRX PCM Part Number: 12678511
$265.60 MSRP: $538.40
You Save: $272.80 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly-Engine Control (W/2ND Mpu); Engine Control Module; ECM; Module, Emission Control System
- Replaces: 12636660, 12607096
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX PCM Part Number: 12653998
$389.84 MSRP: $791.80
You Save: $401.96 (51%)
ADD TO CART
Product Specifications
- Other Name: Module, Emission Control System; Engine Control Module; ECM
- Replaces: 12633555
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2013-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX ECM Part Number: 12651993
$379.04 MSRP: $769.86
You Save: $390.82 (51%)
ADD TO CART
Product Specifications
- Other Name: Module, Engine Control (W/2ND Mpu); Engine Control Module; Module, Emission Control System
- Replaces: 12616889, 12650256, 12642665, 12637106
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS
View related parts

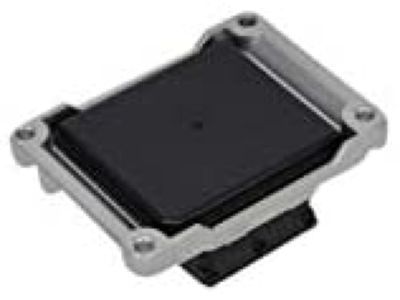

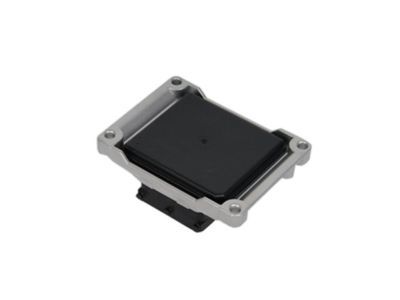

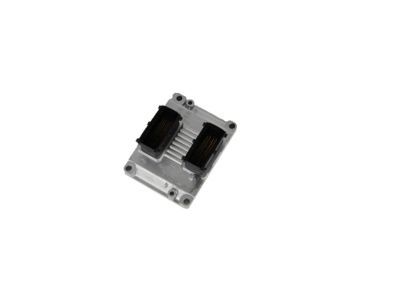

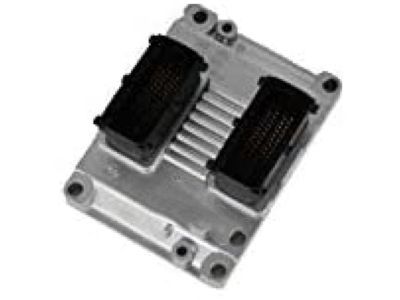

Cadillac SRX ECM Part Number: 19260507
$440.21 MSRP: $1080.78
You Save: $640.57 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module, Emission Control System; Engine Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX ECM Part Number: 12605670
Product Specifications
- Other Name: Module, Emission Control System; Engine Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

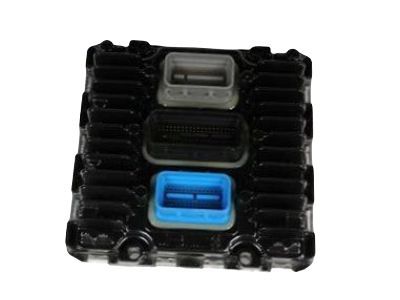

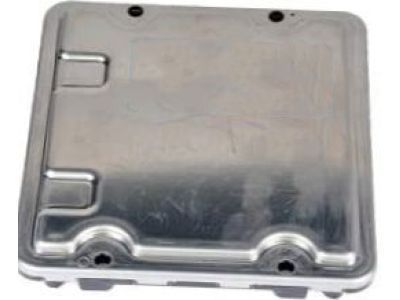

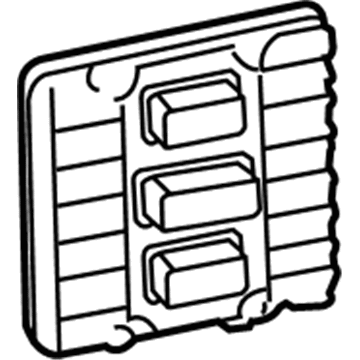

Cadillac SRX PCM Part Number: 12576523
Product Specifications
- Other Name: Module, Engine Control; Engine Control Module; ECM; Module, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX PCM Part Number: 12651994
$517.66 MSRP: $932.72
You Save: $415.06 (45%)
Product Specifications
- Other Name: Module, Emission Control System; Engine Control Module; ECM
- Replaces: 12643248
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX
View related parts
Cadillac SRX ECM Part Number: 12623327
$308.21 MSRP: $552.85
You Save: $244.64 (45%)
Product Specifications
- Other Name: Module, Emission Control System; Engine Control Module
- Replaces: 12614423
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS

Cadillac SRX Engine Control Module

Want to cut long-term maintenance and repair costs? Choose OEM Engine Control Module. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Engine Control Module includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

That is why one of the most important devices in the Cadillac SRX, which reflects the key features of the brand, is the Engine Control Module or ECM. Being the key component of the Cadillac SRX, ECM is the module that controls the work of the engine adjusting the air-fuel mixture, ignition time and idle speed, providing the engine with optimal conditions for work at different models of SRX. This advanced ECM has come a long way from its first-class and integrated circuit to ECM that can be based on the microprocessor and that supports feature like variable valve timing to duplex efficiency and safety. This ECM is suited to fit in different generations of Cadillac SRX; therefore, it can be ideal for car owners with either the first generation that was manufactured between 2003 and 2009 or the second generation that was produced between 2010 and 2016. However, the Cadillac SRX's most important features include a luxurious interior, a high-quality finish and more safety technologies which according to the Engine Control Module for precise execution. The foremost strength of Cadillac SRX Engine Control Module lies in its capability of adjusting the performances for tuning and its contribution to saving fuel economy which is estimated at 19/mpg and for front wheel drive. Along with the above benefits and given its reliability that was mentioned several times above, the Cadillac SRX deserves to be a significant car in the luxury SUV category.

Cadillac SRX Engine Control Module Parts and Q&A

ECM
19260507
Q: How to replace the Engine Control Module (ECM) on Cadillac SRX?
A:
The first step to replace the Engine Control Module (ECM) requires verifying that the ignition is off to avoid component damage followed by checking the main relay circuit voltage at the ecm Fuse with a dvom. First disconnect the negative Battery Cable then take off the ecm Fuse and tcm/ipc Fuse and ecm/tcm Fuse that are located inside the underhood Fuse block. Move on to the upper ecm electrical connector replacement by unlocking it with lever pressure and turning the clamp lever and sliding the lock. The pins must stay away from contact to stop electrostatic discharge from damaging the system. After unlocking the lower ecm connector you can remove it while you detach the redundant ground wire and bolt from the ecm before you remove the ecm bolts and ecm itself. For bracket replacement of the ecm eliminate the electrical connector bracket and bolt first and then the ground wire and bolt followed by the wire harness retainer and bolt on the ecm bracket before taking out the ecm bracket bolts and bracket itself. Begin the installation process by attaching the new ecm bracket securely with its bolts while tightening the bracket bolt to 10 n.m (89 lb in) but the remainder of the bolts to 23 n.m (17 lb ft). Begin by bolting down the wire harness retainer and bolt while tightening it to 23 n.m (17 lb ft) before moving onto installing the electrical connector bracket and bolt at 10 n.m (89 lb in) as well as the wiring harness ground wire and bolt which should be bolted at 10 n.m (89 lb in). First install the ecm along with its bolts while tightening them to 10 n.m (89 lb in) before securing the redundant ground wire with a bolt at 5 n.m (44 lb in). The reconnect process includes joining the lower and upper ecm connectors while you install the ecm/tcm and tcm/ipc and ecm fuses into the underhood Fuse block. Follow the protocol by connecting the battery negative cable then program the ecm while performing an idle learn procedure before using the scan tool to clear all stored dtcs.
