OEM Cadillac SRX Brake Line
Brake Hose- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Brake Lines found
Cadillac SRX Flex Hose, Front Driver Side Part Number: 20842850
$34.23 MSRP: $64.28You Save: $30.05 (47%)Ships in 1-2 Business Days
Cadillac SRX Flex Hose, Passenger Side Part Number: 20842855
$33.75 MSRP: $61.08You Save: $27.33 (45%)Ships in 1-2 Business DaysCadillac SRX Flex Hose, Driver Side Part Number: 20842853
$29.67 MSRP: $55.75You Save: $26.08 (47%)Ships in 1-2 Business DaysCadillac SRX Flex Hose, Front Passenger Side Part Number: 20842848
$36.22 MSRP: $65.57You Save: $29.35 (45%)Ships in 1-2 Business Days

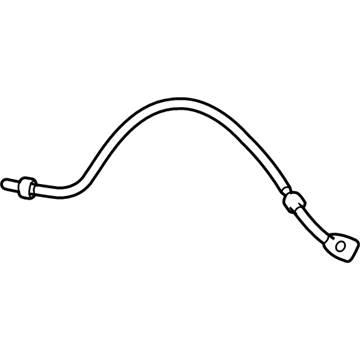

Cadillac SRX Flex Hose, Front Passenger Side Part Number: 19366719
Cadillac SRX Flex Hose, Front Driver Side Part Number: 19366718

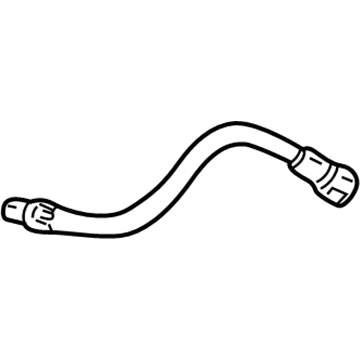

Cadillac SRX Flex Hose, Rear Passenger Side Part Number: 19366714
Cadillac SRX Flex Hose, Rear Part Number: 19366713
Cadillac SRX Brake Line
Want to cut long-term maintenance and repair costs? Choose OEM Brake Line. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Brake Line includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
Cadillac SRX brake line is the part of the hydraulic brake system that delivers hydraulic pressure to the brake caliper pistons after receiving the pressure from the master cylinder. This functionality is necessary for better and confident stopping and slowing down of Cadillac SRX for better performance and safety. When it comes to the brake lines, Cadillac has fitted the different generations of SRX with metal brake lines and rubber brake hoses with various properties in the past. Metallic brake lines can be vulnerable to corrosion and in cold weather frosted, rubber brake hoses can be damaged physically, or may contain internal wear that can rub against the brake disc. For those looking for the better performance, brake line of Cadillac SRX can indeed be modified to those made of stainless steel wires, which offers better and more responsive pedal feel. Cadillac SRX is a mid-size luxury SUV produced in two generations from 2003 to 2016, that became one of the best selling and most popular models for powerful engines, luxurious comfort and setting safety standards. Some can highlight the exterior and interior quality, using the latest technology, and the ability to tow large masses. Since Brake Line is fundamental to the vehicles efficiency and safety measures let's take a look into the Brake Line for all the Cadillac SRX Models. Thus, Brake Line is famous in the automotive market due to its reliability, efficiency, and meeting customers' expectations of driving experience both in standard conditions and in specific driving situations with the luxury and performance the Cadillac brand provides.
Cadillac SRX Brake Line Parts and Q&A
- Q: How to Service and Repair Brake Lines Using the J 45405 Pipe Flaring Tool Kit on Cadillac SRX?A:A J 45405 Pipe Flaring Tool Kit (J 45405) serves to repair brake pipes when using double-walled steel brake pipe helps prevent brake system failure. You must first examine the brake pipe area that needs replacing then free it from its retainers when needed. Choose a good spot to cut the brake pipe away from bends and bolt positions then measure to find the replacement length including needed 6.35 mm (0.250 in) flare for 4.76 mm (3/16 in) olive and 9.50 mm (0.374 in) flare for 6.35 mm (1/4 in) olive. Use the J 45405 (J 45405) included pipe cutter to cut the brake pipe straight before removing the sectioned part. Connect tube nuts to the brake pipe after stripping its nylon coating using J 45405 (J 45405) tools and using these tools to chamfer outside and inside diameter and to chamfer diameter for brake pipe flaring. Fit tube nuts in place then remove dust from the brake pipe and J 45405 system before starting the flaring process by loosening the screw and placing the die halves. Connect the ready pipe to the die cage then lock the clamping screw in place while turning the mandrel to produce the flare. Examine the flare section to verify if it has a specific flare range of 6.74-7.10 mm (0.265-0.279 in) for 4.76 mm (3/16 in) diameter pipe and 8.57-9.27 mm (0.344-0.358 in) for 6.35 mm (1/4 in) diameter pipe. Rest the pipe as needed and put it into place using proper unions then retainers before bleeding the brake system hydraulically. After starting up the engine apply brakes to check for leaks from the flared brake pipes.
- Q: How to replace the front brake line on Cadillac SRX?A:For new front brake hose installation you need to elevate and stabilize the vehicle plus take off the wheel and tire unit first. Thoroughly wipe dirt off all brake hose connections before taking off the wheel speed sensor wire retainers from the fitting bracket. Place a rubber plug over the brake pipe tubing to avoid fluid leaks since you need to take out the front brake hose bracket bolts that attach to the steering knuckle. You should sever the brake pipe fitting from the brake hose and seal it with a cap. Persistently slide the retaining clip above the brake hose prior to pushing a flat-bladed tool under the brake hose retainer and taking it off. Take out the brake hose from its bracket and from the caliper through the brake hose to caliper bolt before pulling the brake hose free from the caliper. Strike the threaded brake hose end against a towel surface to take off the gasket while you discard either gasket pieces that stuck to the caliper or hose ending. Insert the rubber plug into the brake caliper bolt hole where the hose connects. Install the front brake hose bracket onto steering knuckle bolts by tightening them to 14 n.m (10 lb ft). Install new copper brake hose gaskets when inserting the brake hose into the caliper bolt opening. Attach the brake hose to brake caliper bolt with both new gaskets and hose bolt before torquing to 37 lb ft. Place the brake hose inside the bracket with the tapered part facing the pipe. Install the brake hose retainer onto the hose. You need to join the brake hose end to the brake pipe fitting end by removing the plastic cap from the open pipe opening then tightening the connection with 18 n.m (13 lb ft). Put back the wheel sensor wire retainers to the brake hose bracket then bleed the brake system while installing the tire and wheel and letting the vehicle down.
