OEM Cadillac Seville Window Regulator

Cadillac Seville Window Regulator Parts and Q&A

• Window Regulator, Rear Driver Side
  25719489
  Q: How to service and repair the rear door window regulator on Cadillac Seville?

  A:

  You should start the service or repair of the rear door Window Regulator after you take out the door trim panel, door module and water deflector. The service technician should exercise care about using the express window down approach. Reconnect the Power Window Switch together with the module before lifting the window to the highest position while securing it in place by using tape carefully following the window removal warning procedures. Begin by loosening the window clamp fasteners after which adjust the regulator clamps to their bottom position before removing the two captured fasteners. The motor electrical connector needs removal after unscrewing all three remaining fasteners. Shift the regulator upward so that two keyhole trapped fasteners at their slots become free and you can remove the Window Regulator. To install the regulator put it into the door then position captured fasteners into their keyhole slots after which lower it to tighten them. Use a torque wrench to secure the three remaining fasteners of the Window Regulator at 9 n.m (80 lb in). Connect the Window Motor electrical connector after making sure rubber insulators smoothly fit on the Window Regulator clamps. Remove tape before you slowly lift the Window Regulator clamps to the upper most position where they will lock into place with the window. Position the window when it reaches approximately two inches below the opening while you guide the window fully against the division post and mark it forward 2 mm to 3 mm (5/64 in to 1/8 in) before raising it up to its full height. Place the glass inside the clamp installments then secure them to obtain a torque force of 10.5 n.m reaching 93 lb in. To complete the procedure disengage the Power Window Switch and module while installing the water deflector followed by the door module and door trim panel.

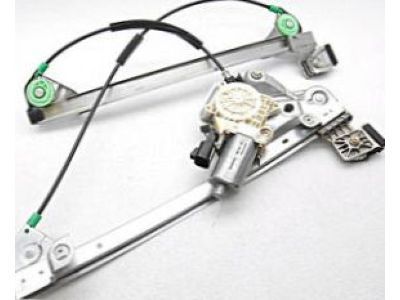

• Window Regulator, Front Driver Side
  25701607
  Q: How to replace the front side door window regulator on Cadillac Seville?

  A:

  The Window Regulator replacement for the front side door starts by taking out the door trim panel followed by removal of the door module together with the water deflector. Individuals performing this operation should maintain a high level of care about the express window down feature. Maintain the power window settings by taping the window in the full-up position after hooking up the Power Window Switch and module. The fasteners of the window clamp need loosening while regulator clamps should be put in a fully downward position. Start by taking off the five fasteners (1, 2) and disconnecting the electrical connector from the motor before pulling out the Window Regulator from the door. When installing the Window Regulator position it within the door while placing the two keyhole connection fasteners in their designated slots. Connect the electrical connector to the Window Regulator motor after fastening the regulator to its position with the three remaining fasteners at 9 n.m (80 lb in). After attaching rubber insulators to the Window Regulator clamps properly you should carefully lift the Window Regulator clamps up to connect the window then remove the tape. To adjust the window properly lower it two inches while pushing it to the center pillar until reaching 2-3 mm (5/64-1/8 in) forward position then raise it to its full height. Fasten the glass through clamp extractors while tightening them to 10.5 n.m (93 lb in). The Power Window Switch and module need to be disconnected and then install the water deflector and door module followed by the door trim panel. To finalize the procedure a front door module requires programming.
