How to remove and install a clutch pressure plate and driven plate on Cadillac Escalade?

Take out the transmission. Take off the quick disconnect that connects the concentric slave cylinder. The system needs a clutch drive gear or a (J5824-01) to effectively support the clutch. Be sure to mark not only the Flywheel (5) but also a clutch Pressure Plate lug so you know where to place them for mounting. Take out the bolts (3) and the washers (2) that attach both the clutch Pressure Plate (4) and the clutch driven plate (1) to the Flywheel (5). Lift out the clutch alignment tool from the clutch collar. Clean each part with a water dampened cloth and make sure there are no signs of damage. With a straight edge, examine the surfaces where the clutch connects and check the friction pads for marks, holes, lots of oil and missing or broken rivets; if there is a lot of oil on the friction pads, replace the clutch driven plate. Look for any damaged splines and check that fit splines slide freely and look over all the springs and the boot for bends, cracks and rips. Insert the bolts and the washers and attach the Pressure Plate and clutch plate to the end of the Flywheel. You should install (J5824-01) or a used clutch drive gear for clutch support. Locate the yellow dot on the clutch Pressure Plate and put it in line with the "x" that appears on the heaviest part of the Flywheel. Tighten the clutch Pressure Plate bolts to 41 nm (30 ft. Lbs.). Take out the alignment tool. Attach the quick disconnect to the end of the concentric slave cylinder. Put the transmission in place.

OEM Cadillac Pressure Plate

Clutch Pressure Plate

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Pressure Plates found

View related parts
Cadillac Pressure Plate Part Number: 15765633
$492.59 MSRP: $782.08
You Save: $289.49 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Plate, Engine Clutch(Pressure Plate)
- Replaces: 15043620
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts

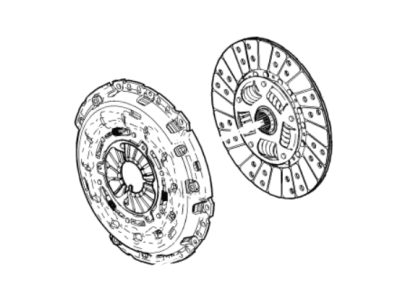

Cadillac Pressure Plate Part Number: 24271358
$299.52 MSRP: $514.39
You Save: $214.87 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Clutch; Plate, Engine Clutch(Pressure Plate)
Fits the following Cadillac Models:
- ATS | 2015-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

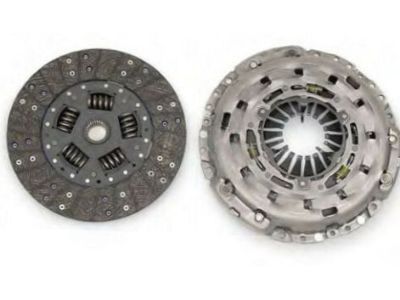

Cadillac Pressure Plate Part Number: 24251131
$262.63 MSRP: $432.46
You Save: $169.83 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Plate, Engine Clutch(Pressure Plate)
Fits the following Cadillac Models:
- ATS | 2013-2014 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Cadillac Pressure Plate Part Number: 24278525
$862.24 MSRP: $1368.65
You Save: $506.41 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Clutch; Plate, Engine Clutch(Pressure Plate)
- Replaces: 24268307
Fits the following Cadillac Models:
- CT5 | 2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
View related parts

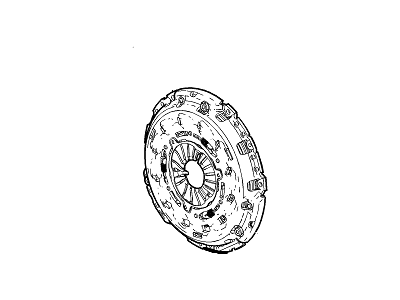

Cadillac Pressure Plate Part Number: 24271357
$136.52 MSRP: $216.77
You Save: $80.25 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate, Engine Clutch Driven (Friction Disc); Clutch Kit; Disc; Plate, Engine Clutch Driven(Friction Disc)
Fits the following Cadillac Models:
- ATS | 2015-2019 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS
View related parts

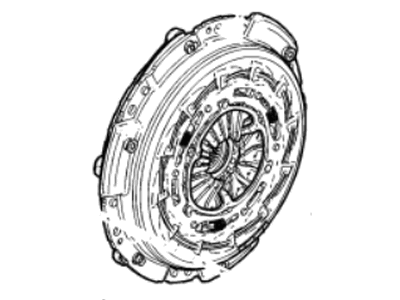

Cadillac Pressure Plate Part Number: 24265373
$998.82 MSRP: $1644.99
You Save: $646.17 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Clutch; Plate, Engine Clutch(Pressure Plate)
Fits the following Cadillac Models:
- ATS | 2016-2019 | V | 6 Cyl 3.6 L GAS
- CT4 | 2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac Pressure Plate Part Number: 24243879
$216.06 MSRP: $355.90
You Save: $139.84 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Plate, Engine Clutch(Pressure Plate)
- Replaces: 24232924
Fits the following Cadillac Models:
- CTS | 2005-2009 | Base, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac Pressure Plate Part Number: 24255749
Product Specifications
- Other Name: Plate; Clutch Kit
- Replaces: 24252151
Fits the following Cadillac Models:
- CTS | 2010-2011 | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac Pressure Plate Part Number: 15002591
Product Specifications
- Other Name: Clutch Kit, Engine (W/Pressure Plate & Driven Plate); Plate Kit, Engine Clutch(Pressure Plate); Clutch Kit
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Pressure Plate Part Number: 14087221
Product Specifications
- Other Name: Cover, Engine Clutch (Pressure Plate); Clutch Kit; Cover, Engine Clutch(Pressure Plate)
- Replaces: 14091968
Fits the following Cadillac Models:
- Cimarron | 1985-1986 | Base, d'Oro | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

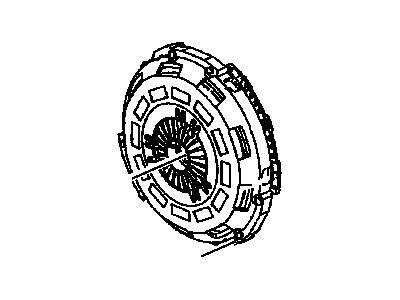

Cadillac Pressure Plate Part Number: 12585771
Product Specifications
- Other Name: Plate, Engine Clutch (Pressure Plate); Clutch Kit; Plate, Engine Clutch(Pressure Plate)
Fits the following Cadillac Models:
- CTS | 2003-2004 | Base, Luxury, Luxury Sport | 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS
View related parts

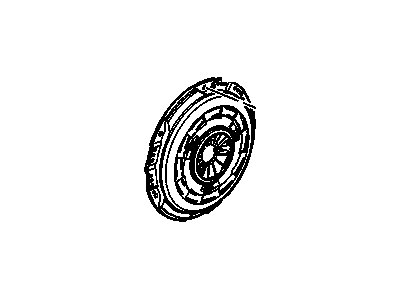

Cadillac Pressure Plate Part Number: 24237689
$393.78 MSRP: $619.35
You Save: $225.57 (37%)
Product Specifications
- Other Name: Plate Assembly-Clutch Pressure & Driven (W/Cover); Clutch Kit; Plate, Engine Clutch(Pressure Plate)
- Replaces: 12581713
Fits the following Cadillac Models:
- CTS | 2004-2005 | V | 8 Cyl 5.7 L GAS

Cadillac Pressure Plate

Choose OEM Pressure Plate, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Pressure Plate. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Pressure Plate provides ease in transfer of power and precision in every change of gears. Cadillac promises not just luxury but a hundred years of badge work binds crisp design, luxury interiors and technology in the dash to vehicles that are both vintage and modern at the same time. The seat cushions are comfortable in any Cadillac and are similar to lounge chairs and the magnetic ride will ensure that potholes do not shake your belief. Touch screens cover the dashboard, augmentation displays showcase speed and direction, and adaptive cruise cuts down on the weariness on the highway crawl. Long highway legs seem to be shorter since the wind is muffled by quiet cabins and noise cancellation takes away the rumble. Lighting cuts through the darkness, Super Cruise cuts the lane in your favor and updates keep electronics up to date based on what is over the air. The electric thrust gives the company immediate torque, glass-roof transparency, and art-deco flairs which appear to give each arrival a purposeful and audacious appearance. The Pressure Plate of the clutch assembly holds the disc together with the flywheel using a cone-shaped Belleville spring to ensure that the torque of the engine slides smoothly into the transmission as the pedal is light enough to operate in the city and strong enough to make back-road blasts. Drivers with racing interests choose the lever style Pressure Plate, which sacrifices a little extra pedal weight in exchange for one that gives the rock-solid bite during hard launches and continued high revs. All Cadillac vehicles are a happy match with their Pressure Plate of choice to reward a shift with more consistent power flow and longer life of components.

Cadillac Pressure Plate Parts and Q&A

Pressure Plate
15002591
Q: How to remove and install a clutch pressure plate and driven plate on Cadillac Escalade?
A:
Take out the transmission. Take off the quick disconnect that connects the concentric slave cylinder. The system needs a clutch drive gear or a (J5824-01) to effectively support the clutch. Be sure to mark not only the Flywheel (5) but also a clutch Pressure Plate lug so you know where to place them for mounting. Take out the bolts (3) and the washers (2) that attach both the clutch Pressure Plate (4) and the clutch driven plate (1) to the Flywheel (5). Lift out the clutch alignment tool from the clutch collar. Clean each part with a water dampened cloth and make sure there are no signs of damage. With a straight edge, examine the surfaces where the clutch connects and check the friction pads for marks, holes, lots of oil and missing or broken rivets; if there is a lot of oil on the friction pads, replace the clutch driven plate. Look for any damaged splines and check that fit splines slide freely and look over all the springs and the boot for bends, cracks and rips. Insert the bolts and the washers and attach the Pressure Plate and clutch plate to the end of the Flywheel. You should install (J5824-01) or a used clutch drive gear for clutch support. Locate the yellow dot on the clutch Pressure Plate and put it in line with the "x" that appears on the heaviest part of the Flywheel. Tighten the clutch Pressure Plate bolts to 41 nm (30 ft. Lbs.). Take out the alignment tool. Attach the quick disconnect to the end of the concentric slave cylinder. Put the transmission in place.
