OEM Cadillac Fuel Pressure Sensor

Fuel Tank Pressure Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Fuel Pressure Sensors found

View related parts

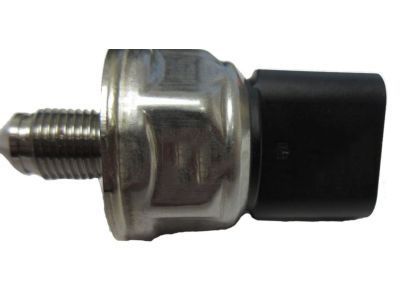

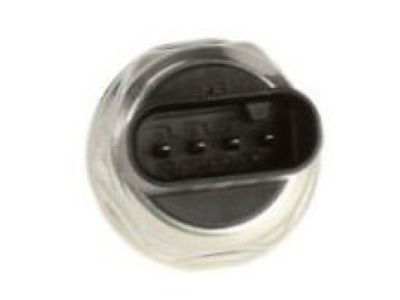

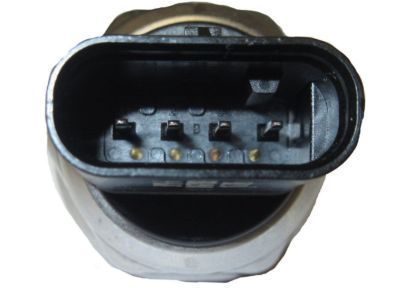

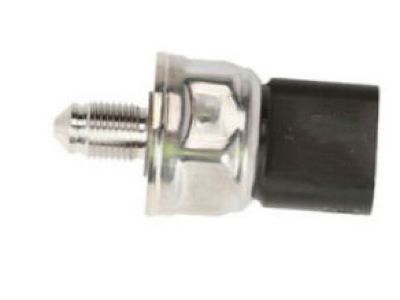

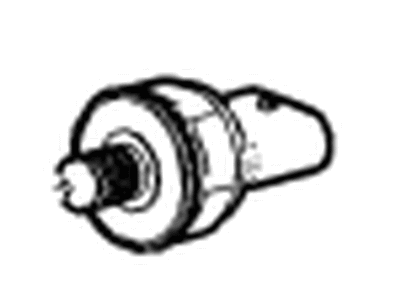

Cadillac Pressure Sensor Part Number: 12673825
$66.82 MSRP: $125.48
You Save: $58.66 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12650701
Fits the following Cadillac Models:
- CTS | 2016 | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Pressure Sensor, Passenger Side Part Number: 13502903
$48.74 MSRP: $100.17
You Save: $51.43 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Level Sensor; Tank Pressure Sensor; Sensor; Sensor, Early Fuel Evaporation; Sensor, Fuel Tank Meter/Pump
- Position: Passenger Side
- Replaces: 13502510
Fits the following Cadillac Models:
- ATS | 2013-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- CT4 | 2020-2024 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
- CT6 | 2016-2020 | Base, Luxury, Platinum, Premium Luxury, Sport, V | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 4.2 L GAS
- CTS | 2009-2019 | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
- DTS | 2009-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
- Escalade | 2008-2023 | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2008-2023 | Base, Luxury, Platinum, Premium, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade EXT | 2008-2013 | Base, Luxury, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- SRX | 2010-2016 | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 12682589
$52.23 MSRP: $106.10
You Save: $53.87 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12662738, 12652442
Fits the following Cadillac Models:
- ATS | 2016-2019 | Performance, Premium, Premium Luxury, V | 6 Cyl 3.6 L GAS
- CT6 | 2016-2018 | Base, Luxury, Platinum, Premium Luxury | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS
- CTS | 2017-2019 | Luxury, Premium, Premium Luxury, Vsport, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
- XTS | 2014-2019 | Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 12673824
$77.76 MSRP: $157.92
You Save: $80.16 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12623130
Fits the following Cadillac Models:
- Escalade | 2015-2016 | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2015-2016 | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Pressure Sensor Part Number: 12668189
$49.36 MSRP: $100.26
You Save: $50.90 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- XTS | 2014-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Pressure Sensor Part Number: 12635273
$65.24 MSRP: $132.52
You Save: $67.28 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Pressure Sensor; Sensor; Injector; Sensor, Computer Control Sensors
- Replaces: 12633417
Fits the following Cadillac Models:
- ATS | 2013-2016 | Luxury, Performance, Premium, V | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- CTS | 2014-2016, 2011 | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- SRX | 2012-2016 | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 12627092
$94.23 MSRP: $191.44
You Save: $97.21 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- ATS | 2013-2016 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
- CT6 | 2016-2017 | Base, Luxury, Plug-In | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- CTS | 2014-2016 | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 12247409
$45.23 MSRP: $92.95
You Save: $47.72 (52%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Fuel Tank Meter/Pump
- Replaces: 88965447
Fits the following Cadillac Models:
- Escalade | 2007-2008 | Base, Platinum | 8 Cyl 6.2 L GAS
- Escalade ESV | 2004-2008 | Base, Platinum | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Escalade EXT | 2004-2008 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 25201778
$50.32 MSRP: $91.08
You Save: $40.76 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor
- Replaced by: 28289962
Fits the following Cadillac Models:
- ATS | 2017-2019 | Base, Luxury | 4 Cyl 2.0 L GAS
- CT6 | 2018 | Base, Luxury, Plug-In | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- CTS | 2017-2019 | Base, Luxury | 4 Cyl 2.0 L GAS
View More
View related parts
Cadillac Water Sensor Part Number: 12375515
$127.49 MSRP: $239.42
You Save: $111.93 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Tank Meter/Pump
- Replaces: 12511965
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Pressure Sensor Part Number: 12708493
$22.92 MSRP: $43.04
You Save: $20.12 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection; Fuel Rail Pressure Sensor; Fuel Tank Pressure Sensor; Sensor, Computer Control Sensors
- Replaces: 12684286, 12664124
Fits the following Cadillac Models:
- ATS | 2018 | Premium Luxury, Premium Performance, V | 6 Cyl 3.6 L GAS
- CT4 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2020-2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
- CT6 | 2018-2020 | Base, Luxury, Platinum, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS
- CTS | 2017-2019 | V | 8 Cyl 6.2 L GAS
- Escalade | 2017-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2017-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- XT4 | 2019-2023 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS
- XT5 | 2017-2023 | Base, Livery, Luxury, Platinum, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
- XT6 | 2020-2023 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 25201779
$58.26 MSRP: $109.40
You Save: $51.14 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Sensor, Computer Control Sensors
- Replaced by: 28289963
Fits the following Cadillac Models:
- CT6 | 2019-2020 | Platinum, V | 8 Cyl 4.2 L GAS
View related parts
Cadillac Pressure Sensor Part Number: 13516496
$48.62 MSRP: $98.74
You Save: $50.12 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 13579380
Fits the following Cadillac Models:
- ATS | 2013-2016 | Base, Luxury, Performance, Premium, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- ELR | 2014 | Base | 4 Cyl 1.4 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Cadillac Pressure Sensor Part Number: 13500745
$29.73 MSRP: $55.84
You Save: $26.11 (47%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Pressure; Fuel Injection Pressure Sensor; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor; Sensor, Computer Control Sensors; Sensor, Fuel Tank Meter/Pump
- Replaces: 13500747, 25780327
Fits the following Cadillac Models:
- SRX | 2012-2016 | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

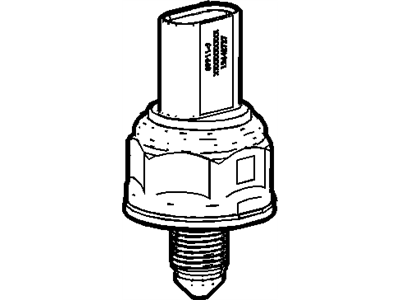

Cadillac Pressure Sensor Part Number: 12642727
$65.61 MSRP: $123.22
You Save: $57.61 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Fuel Injection Fuel Rail Fuel Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Sensor, Computer Control Sensors
Fits the following Cadillac Models:
- CTS | 2016 | Vsport, Vsport Premium | 6 Cyl 3.6 L GAS
View related parts
Cadillac Fuel Pressure Regulator, Passenger Side Part Number: 16238399
Product Specifications
- Other Name: Sensor, Fuel Tank Pressure; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Pressure Regulator; Sensor, Early Fuel Evaporation; Fuel Gauge Sending Unit; Tank Pressure Sensor
- Position: Passenger Side
- Replaces: 12206740, 16217059, 16257276, 22678829, 09377680, 12219388, 16196060, 9377680
Fits the following Cadillac Models:
- CTS | 2003-2008 | Base, Luxury, Luxury Sport, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
- DTS | 2006-2008 | Base, Luxury, Platinum | 8 Cyl 4.6 L GAS
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- Eldorado | 1998-2002 | ESC, ETC | 8 Cyl 4.6 L GAS
- Escalade | 2007 | Base | 8 Cyl 6.2 L GAS
- Escalade ESV | 2007, 2003 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Escalade EXT | 2007-2009, 2002-2003 | Base | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- SRX | 2004-2008 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
- STS | 2005-2008 | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
- Seville | 1998-2004 | SLS, STS | 8 Cyl 4.6 L GAS
View More
View related parts
Cadillac Pressure Sensor Part Number: 13574913
$26.19 MSRP: $46.76
You Save: $20.57 (44%)
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Tank Pressure Sensor; Fuel Pressure Sensor; Tank Pressure Sensor; Sensor, Fuel Tank Meter/Pump
Fits the following Cadillac Models:
- CT6 | 2017-2018 | Plug-In | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- ELR | 2014-2016 | Base | 4 Cyl 1.4 L PLUG-IN HYBRID EV-GAS (PHEV)

Cadillac Fuel Pressure Sensor

Choose OEM Fuel Pressure Sensor, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Fuel Pressure Sensor. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Fuel Pressure Sensor Parts and Q&A

Pressure Sensor, Passenger Side
13502903
Q: How to replace the fuel pressure sensor on a 3.6L engine on Cadillac CTS?
A:
As a first step to replace the Fuel Pressure Sensor on a 3.6l engine one needs to relieve the fuel system pressure. Start by removing both the cross vehicle brace and Intake Manifold before taking off the foam insulator from the fuel rails. It is important to avoid touching the plastic sensor housing with direct force yet you can use its hexagon for the tightening or loosening process. A 27 mm socket will be used to remove the Fuel Pressure Sensor from the fuel injection Fuel Rail for disposal. Deplete all fuel from the Fuel Rail and sensor location before using a lint-free cloth to dry both the sealing cone inside the rail and its surrounding area. Check that the sealing cone remains free of fuel as well as debris while being burr-free. Apply gm p/n 12345610 (equivalent to Canadian P/N 993193) silicon-free engine oil to the threads and sealing cone in the Fuel Rail followed by new Fuel Pressure Sensor treatment with the same lubricant before installation. Screw the new Fuel Pressure Sensor into the fuel injection Fuel Rail but only achieve hand tight contact then remove it to apply lubrication once more. Finish the process by installing the sensor to the rail while tightening it to 33 nm (25 lb ft). Fasten the new Fuel Pressure Sensor onto the fuel injection Fuel Rail by torquing it to 33 nm (25 lb ft). The foam insulator should be installed before the Intake Manifold takes its place. The replacement of the Fuel Rail becomes necessary when a fuel leak develops from this area. The ignition should be turned on when the engine is off for two seconds before being turned off for ten seconds then turned on again with the engine off to check for fuel leaks. Everything will finish with reinstallation of the cross vehicle brace.
Pressure Sensor
12247409
Q: How to replace the Fuel Pressure Sensor on a 1500 LWB with a 117.3L tank and E85 on Cadillac Escalade?
A:
Before you can replace the Fuel Tank pressure sensor on a 1500 lwb with a 117.3l (31 Gal) tank and e85, take off the Fuel Tank first. After that, gently rock the sensor as you pull it upwards to take it out. Once you have the new Fuel Tank pressure sensor, put it in place and put the Fuel Tank back on.
