How to replace the Fuel Filler Hose on the 2500 Series on Cadillac Escalade?

The first step to replace the filler pipe of the 2500 series Fuel Tank involves removing the rear Fuel Tank. Start by unfastening the chassis wiring harness ground bolt as well as the left rear lamp ground wire and fill pipe ground strap which mounts to the frame. First disconnect the rear axle vent hose clip from the fill pipe neck. Then loosen the Fuel Tank fill hose clamp located at the front tank while removing the fuel fill hose evaporative emission (EVAP) line quick connect fitting from the Fuel Tank line. Start by removing the front tank fuel fill hose together with the integral clamp secured to the crossmember before you disassemble the fuel fill hose/pipe assembly. Gas contamination will be prevented by using caps on both the Fuel Tank's opening and the fuel and evap lines' open ends. The replacement process for any serviceable component of the fill pipe assembly starts with separating it by unbonding the evaporative emission canister hose followed by unclamping the canister hose clamp and Fuel Tank fill pipe clamp and removing the fill pipe housing bolts then dismantling the fill pipe housing and fill pipe restrictor plus the fill pipe clamp and vent hose and fill hose clamp before releasing the canister hose clip and fill pipe. The assembly process requires torquing the Fuel Tank fill hose clamp to 2.5 nm (22 lb in) as well as tightening the fill pipe , canister hose clip , fill hose clamp to 2.5 nm (22 lb in), vent hose , fill pipe clamp to 2.5 nm (22 lb in), fill pipe restrictor , fill pipe housing , fill pipe housing bolts to 2.3 nm (20 lb in), fill pipe clamp to 2.5 nm (22 lb in), and canister hose clamp to 2.5 n start installation by removing protective covers from both ends of the front Fuel Tank and fuel/evap tubes before adding the fuel fill hose/pipe component and securing the front tank hose connection. Fasten the quick connect fitting between the Fuel Tank line and fuel fill hose evap line while tightening the Fuel Tank fill hose clamp to 2.5 nm (22 lb in). Install the integral clamp to the crossmember and attach the rear axle vent hose clip to the fill pipe neck. The fill pipe ground strap needs to be placed at the left rear lamp ground wire before attaching both to the frame and inserting the chassis wiring harness ground bolt with 9 nm (80 lb in) torque. The last step includes reinstalling the rear Fuel Tank.

How to service and repair the fuel filler hose for a single tank on Cadillac Escalade?

First for single tank Fuel Filler Hose repairs start by cleaning the fuel pipe connections along with their surrounding areas to avoid any contaminations. Start the procedure by taking off the fuel fill cap with the spare tire stowage lock cylinder and spare tire. Secure the vehicle while elevating it before unfastening screws that hold the Fuel Tank filler housing to fill pipe. The rear axle vent hose clip must be opened at the fill pipe for you to detach the hose. Begin by unbolting the fuel fill pipe ground strap and moving on to loosen both clamp attachments between the vent hose and Fuel Tank as well as the fuel fill pipe and Fuel Tank. The instructions state to dispose the fuel fill pipe bracket bolt before removing both components by separating the fuel fill pipe from the Fuel Tank while disengaging the bracket from the frame. Prevent contaminant entry into the Fuel Tank by placing a cap on its open end. Start by uncapping the Fuel Tank opening then install the fuel fill pipe and vent hose to the Fuel Tank while securing the fuel fill pipe bracket to the frame before you install the fuel fill pipe bracket bolt and secure it to 12 n.m (106 lb in). Following Fuel Tank clamp tightening to 2.5 n.m (22 lb in), install the fuel fill pipe ground strap bolt and tighten it to 9 n.m (80 lb in). Reposition the rear axle vent hose clip to the fill pipe before lowering the vehicle while securing Fuel Tank fill pipe screws with 2.3 n.m torque. End the repair process by putting back the spare tire followed by the spare tire stowage lock cylinder and fuel fill cap.

OEM Cadillac Escalade Fuel Filler Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

29 Fuel Filler Hoses found

View related parts
Cadillac Escalade Filler Neck Part Number: 20792232
$76.91 MSRP: $128.18
You Save: $51.27 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Replaces: 25858609
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac Escalade | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Cadillac Escalade Upper Hose Part Number: 84692824
$34.82 MSRP: $55.29
You Save: $20.47 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Fuel Tank Filler; Fuel Filler Hose; Fuel Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts
Cadillac Escalade Lower Hose Part Number: 84564113
$23.26 MSRP: $36.93
You Save: $13.67 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Fuel Tank Filler; Fuel Filler Hose; Fuel Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts
Cadillac Escalade Filler Neck Part Number: 85545882
$135.81 MSRP: $203.00
You Save: $67.19 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler (W/Filler Hose); Filler Pipe
- Replaced by: 86819921
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts
Cadillac Escalade Filler Neck Part Number: 85512438
$167.44 MSRP: $250.29
You Save: $82.85 (34%)
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe
- Replaces: 84731626
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
View related parts

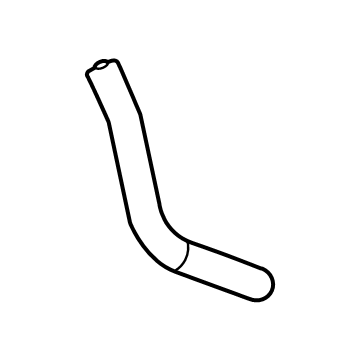

Cadillac Escalade Upper Hose Part Number: 84711946
$34.82 MSRP: $52.51
You Save: $17.69 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Fuel Tank Filler; Fuel Filler Hose; Fuel Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
View related parts

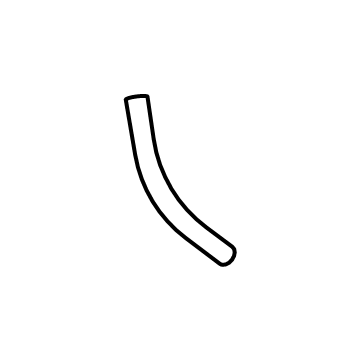

Cadillac Escalade Vent Hose Part Number: 84692825
$50.60 MSRP: $76.32
You Save: $25.72 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Fuel Tank Filler Vent; Fuel Hose; Hose, Evaporation Emission System(Fuel Tank End)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts
Cadillac Escalade Lower Hose Part Number: 84224659
$33.16 MSRP: $50.02
You Save: $16.86 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Fuel Tank Filler
- Replaces: 84018881
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

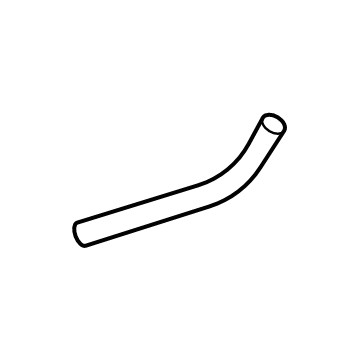

Cadillac Escalade Vent Hose Part Number: 84564116
$26.85 MSRP: $40.50
You Save: $13.65 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Fuel Tank Filler Vent; Fuel Hose; Hose, Evaporation Emission System(Fuel Tank End)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts

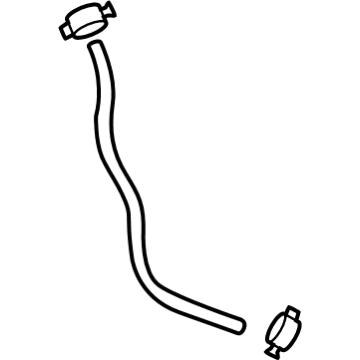

Cadillac Escalade Vent Hose Part Number: 84711944
$23.25 MSRP: $35.07
You Save: $11.82 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Fuel Tank Filler Vent; Fuel Hose; Hose, Evaporation Emission System(Fuel Tank End)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
View related parts

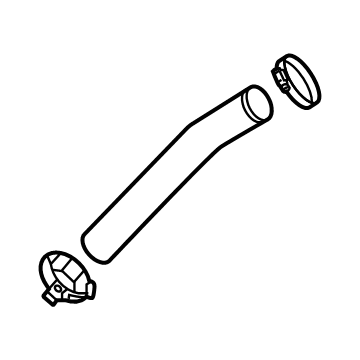

Cadillac Escalade Lower Hose Part Number: 84818368
$44.41 MSRP: $69.50
You Save: $25.09 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Fuel Tank Filler; Fuel Filler Hose; Fuel Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Lower Hose Part Number: 22951231
Product Specifications
- Other Name: Hose, Fuel Tank Filler
- Replaces: 15289733
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2014 Cadillac Escalade | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Upper Hose Part Number: 23113672
$34.35 MSRP: $51.11
You Save: $16.76 (33%)
Product Specifications
- Other Name: Hose, Fuel Tank Filler; Lower Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2016 Cadillac Escalade | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Lower Hose Part Number: 22951221
Product Specifications
- Other Name: Hose, Fuel Tank Filler
- Replaces: 15289732
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Upper Pipe Part Number: 25858610
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Cadillac Escalade | Hybrid, Hybrid Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Cadillac Escalade Filler Neck Part Number: 22951206
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Replaces: 20878551
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2013 Cadillac Escalade | Hybrid, Hybrid Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV)
View related parts
Cadillac Escalade Filler Neck Part Number: 15732488
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Cadillac Escalade | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Escalade Filler Neck Part Number: 19260236
Product Specifications
- Other Name: Pipe, Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe
- Replaces: 25852917
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac Escalade | Base, Platinum | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Filler Neck Part Number: 15289920
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Replaces: 15119345
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Filler Neck Part Number: 22827847
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2016 Cadillac Escalade | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS

| Page 1 of 2 |Next >

1-20 of 29 Results

Cadillac Escalade Fuel Filler Hose

Want to cut long-term maintenance and repair costs? Choose OEM Fuel Filler Hose. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade Fuel Filler Hose includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Fuel Filler Hose is the crucial part that helps to deliver fuel into the fuel tank of extent Cadillac Escalade models safely and effectively. This essential part, commonly known as a fuel fill-pipe hose is well secured by clamps and few screws to ensure that the hose connects well at the other end to the fuel fill cap inlet. Praised for its good quality and durability, Fuel Filler Hose is non-negotiable in the process of fuel system functionality and component preservation within the automotive concern. This is important because Escalade comes in several generations, and the ability of this body style to fit perfectly into each of the generations is a sign of its importance in Accompanying the changing face of this full-size luxury SUV. People love Cadillac Escalade for its engine types; the standard 6.2-liter V8 and the 3-liter diesel engines that would only require a well-fitted Fuel Filler Hose. This component is not only beneficial to the performance of the Cadillac Escalade but also becomes a safety application because it can help checks fuel leakages and ensures efficient fuel supply. The Fuel Filler Hose is built to be durable contributing to its efficiency as a part of the vehicle as it is subjected to everyday use. Automotive is indeed a highly competitive industry where every product features a fuel filler hose that improves the Cadillac Escalade's efficiency and safety on the road; therefore, it is a valuable asset for any Cadillac Escalade owner.

Cadillac Escalade Fuel Filler Hose Parts and Q&A

Upper Hose
15124940
Q: How to replace the Fuel Filler Hose on the 2500 Series on Cadillac Escalade?
A:
The first step to replace the filler pipe of the 2500 series Fuel Tank involves removing the rear Fuel Tank. Start by unfastening the chassis wiring harness ground bolt as well as the left rear lamp ground wire and fill pipe ground strap which mounts to the frame. First disconnect the rear axle vent hose clip from the fill pipe neck. Then loosen the Fuel Tank fill hose clamp located at the front tank while removing the fuel fill hose evaporative emission (EVAP) line quick connect fitting from the Fuel Tank line. Start by removing the front tank fuel fill hose together with the integral clamp secured to the crossmember before you disassemble the fuel fill hose/pipe assembly. Gas contamination will be prevented by using caps on both the Fuel Tank's opening and the fuel and evap lines' open ends. The replacement process for any serviceable component of the fill pipe assembly starts with separating it by unbonding the evaporative emission canister hose followed by unclamping the canister hose clamp and Fuel Tank fill pipe clamp and removing the fill pipe housing bolts then dismantling the fill pipe housing and fill pipe restrictor plus the fill pipe clamp and vent hose and fill hose clamp before releasing the canister hose clip and fill pipe. The assembly process requires torquing the Fuel Tank fill hose clamp to 2.5 nm (22 lb in) as well as tightening the fill pipe , canister hose clip , fill hose clamp to 2.5 nm (22 lb in), vent hose , fill pipe clamp to 2.5 nm (22 lb in), fill pipe restrictor , fill pipe housing , fill pipe housing bolts to 2.3 nm (20 lb in), fill pipe clamp to 2.5 nm (22 lb in), and canister hose clamp to 2.5 n start installation by removing protective covers from both ends of the front Fuel Tank and fuel/evap tubes before adding the fuel fill hose/pipe component and securing the front tank hose connection. Fasten the quick connect fitting between the Fuel Tank line and fuel fill hose evap line while tightening the Fuel Tank fill hose clamp to 2.5 nm (22 lb in). Install the integral clamp to the crossmember and attach the rear axle vent hose clip to the fill pipe neck. The fill pipe ground strap needs to be placed at the left rear lamp ground wire before attaching both to the frame and inserting the chassis wiring harness ground bolt with 9 nm (80 lb in) torque. The last step includes reinstalling the rear Fuel Tank.
Filler Neck
15749592
Q: How to service and repair the fuel filler hose for a single tank on Cadillac Escalade?
A:
First for single tank Fuel Filler Hose repairs start by cleaning the fuel pipe connections along with their surrounding areas to avoid any contaminations. Start the procedure by taking off the fuel fill cap with the spare tire stowage lock cylinder and spare tire. Secure the vehicle while elevating it before unfastening screws that hold the Fuel Tank filler housing to fill pipe. The rear axle vent hose clip must be opened at the fill pipe for you to detach the hose. Begin by unbolting the fuel fill pipe ground strap and moving on to loosen both clamp attachments between the vent hose and Fuel Tank as well as the fuel fill pipe and Fuel Tank. The instructions state to dispose the fuel fill pipe bracket bolt before removing both components by separating the fuel fill pipe from the Fuel Tank while disengaging the bracket from the frame. Prevent contaminant entry into the Fuel Tank by placing a cap on its open end. Start by uncapping the Fuel Tank opening then install the fuel fill pipe and vent hose to the Fuel Tank while securing the fuel fill pipe bracket to the frame before you install the fuel fill pipe bracket bolt and secure it to 12 n.m (106 lb in). Following Fuel Tank clamp tightening to 2.5 n.m (22 lb in), install the fuel fill pipe ground strap bolt and tighten it to 9 n.m (80 lb in). Reposition the rear axle vent hose clip to the fill pipe before lowering the vehicle while securing Fuel Tank fill pipe screws with 2.3 n.m torque. End the repair process by putting back the spare tire followed by the spare tire stowage lock cylinder and fuel fill cap.
