How to replace the alternator on Cadillac Eldorado?

To remove the generator, firstly disconnect the battery negative cable and remove the Drive Belt, radiator support sight shield as well as the upper front generator mounting bolt unless it is already removed. Lift and put up the car, and then take out the engine splash shield and the bolts holding the generator access cover to the front compartment lower panel before removing the cover. Remove the generator output bat terminal nut to disconnect positive lead, disconnect the wiring harness connector from the generator, and reposition the protective cover from generator output bat terminal for access. Loosen the rear generator bracket from the engine, in that way, the top bolt, the front lower mounting bolt, the lower rear bolt, and the upper rear mounting bolt are removed. Secure the generator above the a/c compressor clutch pulley to remove the bracket of a/c compressor/generator front by removing the three bolts that keep it attached to the engine and a/c compressor, then extract the bracket, rotating the generator to remove it from the vehicle. For the installment, align and fasten the generator over the a/c compressor clutch pulley mounted, install the a/c compressor/generator front bracket, a finger tighten all three mounting bolts, and tighten the upper engine mounting bolt, lower engine mounting bolt, and a/c compressor mounting bolt to 50 n.m (37 lb ft). Mount the generator and fasten it to the engine and a/c compressor with finger tightness of all mounting bolts, come the rear generator bracket bolts to the engine upper rear and lower rear mounting bolts lower front mounting bolt to 50 n.m (37 lb ft). Connect the wire harness connector to the generator and join the battery positive lead and fix the generator output bat terminal nut by tightening to 12.5 n. M (111 lb in). Bolt down the protective cover to the generator output bat terminal, position the generator access cover to the front compartment lower panel, and tighten the bolts to be 20 n.m (15 lb ft). Mount the engine splash shield and lower the vehicle; mount the upper front mounting bolt with 47 n.m (35 lb ft), and then mount the radiator support sight shield, the Drive Belt, and reconnect the battery negative cable.

OEM Cadillac Eldorado Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Alternators found

View related parts

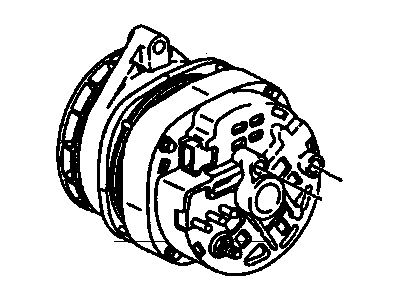

Cadillac Eldorado Alternator Part Number: 19244769
$125.67 MSRP: $236.00
You Save: $110.33 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464079, 19152125
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Cadillac Eldorado | Base, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244756
Product Specifications
- Other Name: Generator Assembly, (Remanufacture)
- Replaces: 10463069, 19152083
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1989 Cadillac Eldorado | Base, Biarritz | 4.1L V8, 4.5L V8, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
View related parts
Cadillac Eldorado Alternator Assembly Part Number: 19151862
Product Specifications
- Other Name: Generator, Engine Electrical; Alternator
- Replaces: 01101308, 1101308, 10463397
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Alternator Part Number: 10495419
Product Specifications
- Other Name: Generator Assembly, (Remanufactured)
- Replaces: 10495420
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts

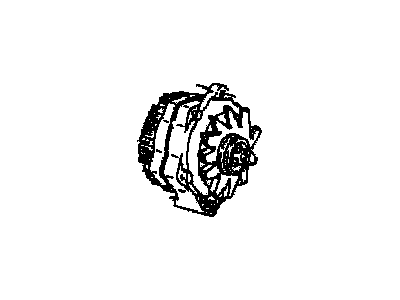

Cadillac Eldorado Alternator Part Number: 10464397
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Alternator Assembly Part Number: 10463442
Product Specifications
- Other Name: Generator Assembly, (Remanufactured); Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts

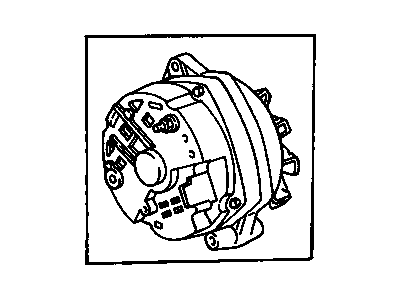

Cadillac Eldorado Alternator Part Number: 19244774
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464089, 19152131
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244773
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464426, 19152133, 10464088, 19152130
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2002 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244763
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463385, 19152107
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1997 Cadillac Eldorado | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244762
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 19152106, 10463377
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1997 Cadillac Eldorado | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244760
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463294, 19152099
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244757
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463121, 19152090
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1990 Cadillac Eldorado | Base, Biarritz, Touring | 8 Cyl 4.5 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19151889
Product Specifications
- Other Name: Generator, Engine Electrical
- Replaces: 01972724, 1972724
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL

Cadillac Eldorado Alternator

Want to cut long-term maintenance and repair costs? Choose OEM Alternator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Eldorado parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Eldorado Alternator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The alternator in Cadillac Eldorado is an important system which performs two functions- the battery charging and electrical system drive while the vehicle is in operation. Its function is to transform mechanical energy of the engine into electrical one, mainly AC, which is later rectified into DC for battery charging and supplying electrical powers to many parts in the car. Cadillac Eldorado alternators normally use a two-part cast aluminum case together with a stator and rotor, a pulley and fan are fixed to the rotor shaft. There have been various kinds of alternators as used over the years, they include those with an external regulator or an internal regulator and the newer versions with the regulator integrated into the PCM or Powertrain Control Module. Special high-output alternators are also offered for specific non-standard Eldorado versions, owing to increased load of electrical equipment due to additional parts.

Cadillac Eldorado Alternator Parts and Q&A

Alternator
19244773
Q: How to replace the alternator on Cadillac Eldorado?
A:
To remove the generator, firstly disconnect the battery negative cable and remove the Drive Belt, radiator support sight shield as well as the upper front generator mounting bolt unless it is already removed. Lift and put up the car, and then take out the engine splash shield and the bolts holding the generator access cover to the front compartment lower panel before removing the cover. Remove the generator output bat terminal nut to disconnect positive lead, disconnect the wiring harness connector from the generator, and reposition the protective cover from generator output bat terminal for access. Loosen the rear generator bracket from the engine, in that way, the top bolt, the front lower mounting bolt, the lower rear bolt, and the upper rear mounting bolt are removed. Secure the generator above the a/c compressor clutch pulley to remove the bracket of a/c compressor/generator front by removing the three bolts that keep it attached to the engine and a/c compressor, then extract the bracket, rotating the generator to remove it from the vehicle. For the installment, align and fasten the generator over the a/c compressor clutch pulley mounted, install the a/c compressor/generator front bracket, a finger tighten all three mounting bolts, and tighten the upper engine mounting bolt, lower engine mounting bolt, and a/c compressor mounting bolt to 50 n.m (37 lb ft). Mount the generator and fasten it to the engine and a/c compressor with finger tightness of all mounting bolts, come the rear generator bracket bolts to the engine upper rear and lower rear mounting bolts lower front mounting bolt to 50 n.m (37 lb ft). Connect the wire harness connector to the generator and join the battery positive lead and fix the generator output bat terminal nut by tightening to 12.5 n. M (111 lb in). Bolt down the protective cover to the generator output bat terminal, position the generator access cover to the front compartment lower panel, and tighten the bolts to be 20 n.m (15 lb ft). Mount the engine splash shield and lower the vehicle; mount the upper front mounting bolt with 47 n.m (35 lb ft), and then mount the radiator support sight shield, the Drive Belt, and reconnect the battery negative cable.
