How to replace the front shock absorber assembly (FE7) on Cadillac DTS?

Start by removing the three bolts which secure the strut tower. Support the elevated vehicle by bracketting its frame until the control arms dangle below. Disassemble your vehicle by extracting the wheel and tire followed by wheel speed sensor connector disconnection. Along with removing the wheel speed sensor bracket from the dust shield you need to remove the brake line bracket from the strut. To install the new strut you need to take out the knuckle bolts first and then remove the strut from its vehicle position. Installation begins with struts placed first where fastener caution recommendations must be observed. Screw in the 3 strut tower bolts accompanied by washers followed by torque settings of 66 nm (49 lb ft). Fasten the strut to knuckle bolts and nuts before torquing them to 177 nm (131 lb ft). Secure the brake line bracket on the strut by tightening it to 23 nm (17 lb ft) before installing the wheel speed sensor bracket on the dust shield. Once this is complete, connect the wheel speed sensor connector. Add the wheel and tire before securing them with 125 nm (80 lb ft) torque and lowering the car.

How to service and repair the front coil springs and shock absorber on Cadillac DTS?

Starting to service and repair suspension struts requires first removing the component from the vehicle. Fit the strut into j 45400 while pressing the spring to achieve free movement. Continue to turn the forcing screw on the spring compressor to compress the coil spring. With the 45 torx(R) socket together with j-35669 maintain the strut shaft to remove the upper strut mount nut. Start by taking the strut out of the j 45400. Then loosen the compressor forcing screw to release the upper strut mount and coil spring components. The coil spring and upper strut mount join the j 45400 assembly where the spring suffers compression from turning the forcing screw before fitting the strut to its position. Start by installing the strut retaining nut loosely and use a 45 torx(R) socket with j-35669 to apply a torque of 85 nm (63 lb ft) onto the upper strut mount nut while maintaining the desired orientation on the strut shaft. Use the j 45400 to install the strut into its original position in the vehicle.

OEM Cadillac DTS Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Shock Absorbers found

View related parts
Cadillac DTS Strut Part Number: 19208029
$120.36 MSRP: $226.17
You Save: $105.81 (47%)
ADD TO CART
Product Specifications
- Other Name: Strut Kit, Front and Rear Suspension; Air Spring to Coil Spring Conversion; Complete Suspension Assembly.
- Position: Front
- Replaces: 15211372, 19208028, 15220434
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Passenger Side Part Number: 19302769
$575.19 MSRP: $1116.34
You Save: $541.15 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Shock Absorber Air Lift
- Position: Passenger Side
- Replaces: 15211376
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Driver Side Part Number: 19302768
$575.19 MSRP: $1116.34
You Save: $541.15 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Shock Absorber Air Lift
- Position: Driver Side
- Replaces: 15211375
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Passenger Side Part Number: 19300026
$313.87 MSRP: $609.18
You Save: $295.31 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Absorber Kit, Shock Absorber Air Lift; Absorber, Shock Absorber Air Lift
- Position: Rear Passenger Side
- Replaces: 15873314, 15786901
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac DTS | Base, Luxury, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Driver Side Part Number: 19300025
$313.87 MSRP: $609.16
You Save: $295.29 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Absorber Kit, Shock Absorber Air Lift; Absorber, Shock Absorber Air Lift
- Position: Rear Driver Side
- Replaces: 15873313
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac DTS | Base, Luxury, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Strut Part Number: 19300024
$673.39 MSRP: $1306.92
You Save: $633.53 (49%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Strut Kit, Front And Rear Suspension; Shock Absorber
- Position: Front
- Replaces: 15211374
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

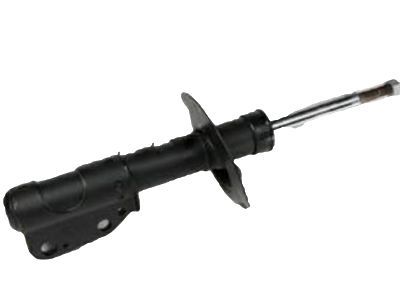

Cadillac DTS Strut Part Number: 19149151
Product Specifications
- Other Name: Strut Kit, Front and Rear Suspension; Air Spring to Coil Spring Conversion; Complete Suspension Assembly.
- Position: Front
- Replaces: 88964312, 22400280
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Part Number: 22400008
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Air to Coil Spring Conversion; Suspension Strut Assembly.; Absorber Kit, Front And Rear Suspension; Absorber Kit, Shock Absorber Air Lift
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Part Number: 22400007
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Air to Coil Spring Conversion; Suspension Strut Assembly.; Absorber Kit, Front And Rear Suspension; Absorber Kit, Shock Absorber Air Lift
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Passenger Side Part Number: 19300033
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Absorber Kit, Shock Absorber Air Lift
- Position: Rear Passenger Side
- Replaces: 20759947
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Driver Side Part Number: 19300032
Product Specifications
- Other Name: Absorber Kit, Rear Leveling Shock; Absorber Kit, Shock Absorber Air Lift
- Position: Rear Driver Side
- Replaces: 20759946
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac DTS Shock Absorber, Rear Part Number: 19121822
Product Specifications
- Other Name: Absorber Kit, Rear Shock; Air to Coil Spring Conversion; Suspension Strut Assembly; Complete Strut Kit; Absorber Kit, Front And Rear Suspension
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS

Cadillac DTS Shock Absorber

Want to cut long-term maintenance and repair costs? Choose OEM Shock Absorber. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DTS Shock Absorber includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Shock Absorber of Cadillac DTS vehicles is the device accountable for the suspension system for the car, complementing the form of the struts. These components assist in reducing bounce and isolate shock impulses resulting in the enhancement of ride comfort and stability. It has been noted that Cadillac DTS vehicles over the years have incorporated many different kinds of shock absorbers- even dozens- which divided into two main categories- twin-tube and mono-tube- differ from each other by the manner in which hydraulic fluid flow is controlled in response to changes in driving conditions. Subtypes of shock absorbers such as PSD and ASD go deeper into defining the shock absorber's response according to conditions like position or acceleration and other technologies including electrorheological and magnetorheological dampers enable a semi-active and adaptive suspension system to kick in and improve comfort and control.

Cadillac DTS Shock Absorber Parts and Q&A

Shock Absorber, Passenger Side
19302769
Q: How to replace the front shock absorber assembly (FE7) on Cadillac DTS?
A:
Start by removing the three bolts which secure the strut tower. Support the elevated vehicle by bracketting its frame until the Control Arms dangle below. Disassemble your vehicle by extracting the wheel and tire followed by wheel speed sensor connector disconnection. Along with removing the wheel speed sensor bracket from the dust shield you need to remove the brake line bracket from the strut. To install the new strut you need to take out the knuckle bolts first and then remove the strut from its vehicle position. Installation begins with struts placed first where fastener caution recommendations must be observed. Screw in the 3 strut tower bolts accompanied by washers followed by torque settings of 66 nm (49 lb ft). Fasten the strut to knuckle bolts and nuts before torquing them to 177 nm (131 lb ft). Secure the brake line bracket on the strut by tightening it to 23 nm (17 lb ft) before installing the wheel speed sensor bracket on the dust shield. Once this is complete, connect the wheel speed sensor connector. Add the wheel and tire before securing them with 125 nm (80 lb ft) torque and lowering the car.
Strut
19300024
Q: How to service and repair the front coil springs and shock absorber on Cadillac DTS?
A:
Starting to service and repair suspension struts requires first removing the component from the vehicle. Fit the strut into j 45400 while pressing the spring to achieve free movement. Continue to turn the forcing screw on the spring compressor to compress the coil spring. With the 45 torx(R) socket together with j-35669 maintain the strut shaft to remove the upper strut mount nut. Start by taking the strut out of the j 45400. Then loosen the compressor forcing screw to release the upper strut mount and coil spring components. The coil spring and upper strut mount join the j 45400 assembly where the spring suffers compression from turning the forcing screw before fitting the strut to its position. Start by installing the strut retaining nut loosely and use a 45 torx(R) socket with j-35669 to apply a torque of 85 nm (63 lb ft) onto the upper strut mount nut while maintaining the desired orientation on the strut shaft. Use the j 45400 to install the strut into its original position in the vehicle.
