OEM Cadillac DTS Door Latch Assembly

Cadillac DTS Door Latch Assembly Parts and Q&A

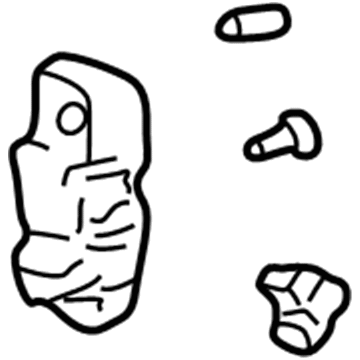

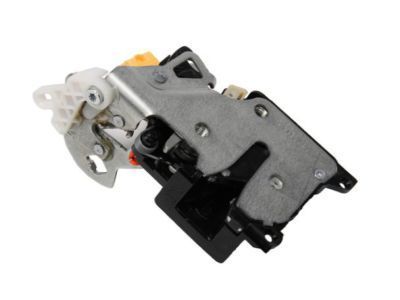

• Lock Assembly, Rear Driver Side
  16639125
  Q: How to replace the rear Door Latch Assembly on Cadillac DTS?

  A:

  The process of replacing the rear door latch starts by positioning the window at the top position followed by door trim panel and door module removal along with water deflector disassembly. Begin by squeezing the tabs in the middle of the bell crank pivot then pull the assembly outward. Find access to the inside handle assembly by starting with front prying then pulling out before moving it to the front. The first step is to disconnect both the outside handle rod from its rear position in the inner panel. After that, easily remove the child security lock by pulling it out. The fasteners should be removed from the door latch while pulling the door latch assembly through the inner panel access hole. The door latch requires removal of its electrical connectors along with inside handle rod and inside lock rod. The door installation sequence starts with attaching the inside lock rod and inside handle rod to the door latch then moving onto electrical connector connection. To install the door latch assembly insert it through the access hole of the inner panel before securing it with fasteners while tightening each screw to 10 N.m (89 lb in). Press the pin on the child security lock through its opening on the lock mechanism so it reaches full engagement with the inner panel. Connect the outside door handle rod to the latch through the retainer clip on the door latch assembly by inserting the rod and finally close the clip. The trim panel harness should be placed between both the handle rods and lock rods before inserting the inside handle assembly's rear end into the inner panel opening as you push the front section completely inward until total engagement. You need to place the bell crank inside the inner panel opening after connecting the lock and handle rods to the clip guides then push it forward until complete engagement with the inner panel. Test the functionality of door handles and locking mechanism first before installing the water deflector and then proceed with door module and door trim panel installation.
• Lower Cover
  84243380
  Q: How to replace the front side Door Latch Assembly on Cadillac DTS?

  A:

  Start the front side door latch replacement by putting the window at its highest position and removing the door trim panel together with the door module and water deflector. Begin by taking out the inside handle assembly through a process of gently prying the front rearward and pulling it outward and moving it forward. Unfasten both handle rod and lock rod from the clip guide before disconnecting the outside door handle rod from the door latch retainer clip through the access hole of the inner panel. The procedure also requires disconnection of the inside lock rod and the outside lock rod from the driver door latch. You must remove the fasteners along with the door latch assembly through the inner panel access hole. After that disconnect the electrical connectors and the inside handle rod from the door latch. You should mount the inside handle rod and electrical connectors to the door latch before inserting the door latch assembly through the access hole then fasten it with fasteners tightened to 10 N.m (89 lb in). The outside lock rod should be set to the door latch while the inside lock rod needs to be linked with the door latch for the driver door installation only. Put the exterior door handle rod through the retainer clip of the door latch assembly before you close the clip. Insert the back end of the inside handle assembly through the opening on the inner panel before pressing the front section until total engagement. At this point, connect both components - the handle rod and lock rod to the clip guide. A thorough inspection of door lock functions must occur before fitting the water deflector. To conclude the procedure install the water deflector followed by the door module and door trim panel.
