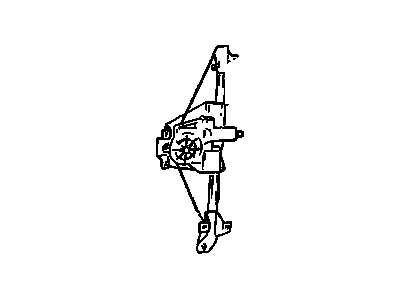

OEM Cadillac Catera Window Regulator

Cadillac Catera Window Regulator Parts and Q&A

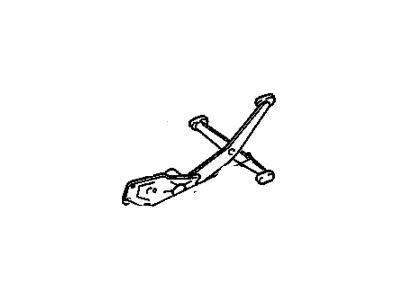

• Window Regulator
  90494396
  Q: How to replace the front side door window regulator on Cadillac Catera?

  A:

  Replacement of the front side door Window Regulator begins by disabling the sir system if present and continuing with the window descent to half position and temporary fixation using tape. The first task involves removing the front door trim panel together with the front door water deflector. Remove the inflatable restraint side impact sensor mounting plate whenever it is present. The power Window Regulator motor electrical connector gets disconnected before taking out the guide rail adjuster. The drilling of rivets enables the extraction of front door Window Regulator components along with motor pieces. The front door Window Regulator requires motor screw removal followed by its detachment from the motor unit. When installing the motor ensure the Window Regulator links to the motor components before tightening all nuts to 5 nm (45 lb in). Place back the front door Window Regulator along with motor before installing new rivets onto the regulator framework. Screw the guide rail adjuster into place together with the power Window Regulator motor electrical connector. Front door water deflectors must be installed prior to the front door trim panel when the inflatable restraint side impact sensor mounting plate is present on the vehicle. After removing the tape from the window it is necessary to activate the sir system when applicable.
• Window Regulator
  90494395
  Q: How to service and repair the front door window regulator on Cadillac Catera?

  A:

  Owners should begin repairs on the front door Window Regulator by disabling their sir system when the vehicle comes with an sir side impact system. Secure the window at half its opening by placing tape. Begin by taking out both the front door trim panel along with the front door water deflector. Start removal of the inflatable-side impact sensor mounting plate if your vehicle has it equipped. Start by disconnecting the power Window Regulator motor electrical connector followed by guide rail adjuster removal. Remove the rivets by drilling before extracting the front door Window Regulator with its motor. You should start by taking off the door Window Regulator motor screws and separately removing the Window Regulator from the motor. Install the Window Regulator to the motor before tightening the door Window Motor screws to 5 n.m (45 lb in). Secure new rivets on the front door Window Regulator while reattaching it with the motor before completing the installation. Follow the installation order of attaching the guide rail adjuster and the power Window Regulator motor electrical connector followed by inflatable restraint side impact sensor mounting plate (if equipped). Finish the installation by placing back the front door water deflector followed by the front door trim panel while unstick the tape from the window and activate the sir system when the vehicle has the sir side impact system.
