How to Adjust and Install Automatic Transmission Shift Levers on Cadillac Catera?

The replacement of the shift control lever begins by removing the console followed by the step of taking out the rear air duct front support nuts and the console rear support nuts . Finally install the supports before moving forward. Slide the air duct backward while removing it and disconnect the automatic transmission control electrical connector. Raise the vehicle and implement vehicle support methods before you detach the shift control linkage from the shift lever followed by lowering the vehicle. Drill out the 5 rivets which secure the control to the body before taking out the automatic transmission control from its placement inside the body. The installation process requires attaching the automatic transmission control to the body before fastening it with 5 rivets. After raising the vehicle you should install the shift control linkage to the shift lever then lower the vehicle. After reattaching the automatic transmission control electrical connector users should position the rear air duct forward to install it while also installing the console rear support along with the console assembly. Secure the rear air duct front support nuts before tightening them to 8 nm (71 inch lbs.) and then perform shift linkage adjustment.

OEM Cadillac Catera Automatic Transmission Shift Levers

Automatic Transmission Shifter

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Automatic Transmission Shift Levers found

View related parts

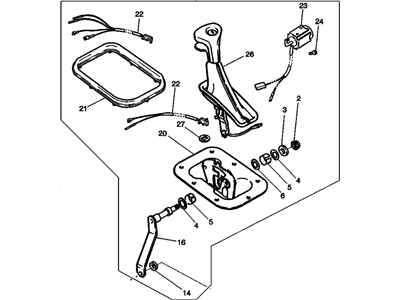

Cadillac Catera CONTROL,A/TRNS Part Number: 09138391
Product Specifications
- Other Name: Control, Transmission Shift Control Lever; Control, Transmission Shift
- Replaces: 90437995, 90437437
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2001 Cadillac Catera | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Catera Shift Lever Part Number: 9138011
Product Specifications
- Other Name: Control, Automatic Transmission; Lever, Transmission Control Lever
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1999 Cadillac Catera | Base, Sport | 6 Cyl 3.0 L GAS

Cadillac Catera Automatic Transmission Shift Levers

Want to cut long-term maintenance and repair costs? Choose OEM Automatic Transmission Shift Levers. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Catera parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Catera Automatic Transmission Shift Levers includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Automatic Transmission Shift Levers in Cadillac Catera models serve as critical components which guarantee reliable and smooth gear shifts during operation. These Automatic Transmission Shift Levers were manufactured for Cadillac Catera models between 1996 to 2001 with floor-mounted design elements to enable comfortable and intuitive driving while enhancing control. The positive feedback and user-friendly capabilities of Cadillac shift levers demonstrate the brand's dedication to reliability and performance since they surpass older column-shifters. The Automatic Transmission Shift Levers installed on the Catera help generate efficiency improvements and safety advantages because this vehicle uses a rear-wheel-drive setup with luxury features. Various Catera models can benefit from the same high-quality performance capabilities through model compatibility. Automatic Transmission Shift Levers offer integrated compatibility to work with the Cadillac Catera V6 engine as they prove essential for the vehicle's operation. These levers excel in the market through their special features which combine ergonomic structure with robust construction to maintain Cadillac's exceptional luxury legacy. The Automatic Transmission Shift Levers elevating the the automaker model exemplify the manufacturer's mission to achieve first-rate driver performance which establishes them as core elements within the vehicle's desirability.

Cadillac Catera Automatic Transmission Shift Levers Parts and Q&A

Gear Shift Assembly
9138391
Q: How to Adjust and Install Automatic Transmission Shift Levers on Cadillac Catera?
A:
The replacement of the shift control lever begins by removing the console followed by the step of taking out the rear air duct front support nuts and the console rear support nuts . Finally install the supports before moving forward. Slide the air duct backward while removing it and disconnect the automatic transmission control electrical connector. Raise the vehicle and implement vehicle support methods before you detach the shift control linkage from the shift lever followed by lowering the vehicle. Drill out the 5 rivets which secure the control to the body before taking out the automatic transmission control from its placement inside the body. The installation process requires attaching the automatic transmission control to the body before fastening it with 5 rivets. After raising the vehicle you should install the shift control linkage to the shift lever then lower the vehicle. After reattaching the automatic transmission control electrical connector users should position the rear air duct forward to install it while also installing the console rear support along with the console assembly. Secure the rear air duct front support nuts before tightening them to 8 nm (71 inch lbs.) and then perform shift linkage adjustment.
