OEM Buick Rendezvous Window Regulator

Buick Rendezvous Window Regulator Parts and Q&A

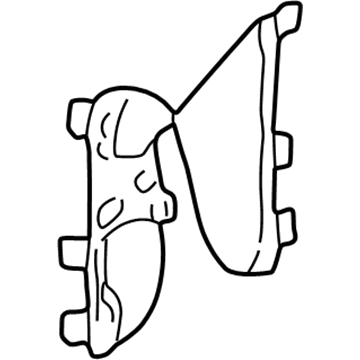

• Window Regulator, Rear Driver Side
  15911244
  Q: How to replace the rear door window regulator on Buick Rendezvous?

  A:

  The first step to replace the rear door Window Regulator starts with trimming off the rear door panel. The first step takes out the water deflector and the speaker. Install tape across the window before fully raising it against the frame. Remove the connection between the window and regulator carrier plate. To move the rear door Window Regulator out of the window opening use these steps: disconnect the electrical connection at the motor then loose both the motor and rail retaining bolts before lifting the regulator through the key slots of the rear door inner panel from its rear access hole. To begin assembly start by inserting the bolt from the rear Window Regulator motor partly into both the motor and rail before guiding the motor-rail system into the rear access hole. Insert the Window Regulator into the key slots before attaching it to both the motor and rail unit and tighten the bolts to 11n.m (97 lb in). Peel off the tape and position the rear window onto the regulator carrier plate before linking it to the plate. First reconnect the electrical connector to the rear Window Regulator motor while reinstalling the rear speaker and the water deflector and the trim panel in sequence.

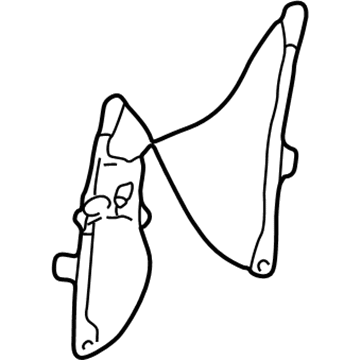

• Window Regulator, Front Driver Side
  15911246
  Q: How to replace the front door window regulator on Buick Rendezvous?

  A:

  Start the front door Window Regulator replacement by taking out the front door trim panel. The water deflector should be removed following the water deflector. Secure the window in an upward position by applying tape to its surface that rests against the window frame after breaking its connection with the Window Regulator carrier plate. To remove the front Window Regulator start by disconnecting the electrical connector from the motor followed by unscrewing two bolts. The removal process requires lifting the regulator through the access hole from the inner door panel using the key slots. To install the front Window Regulator system fit the bolts of the front regulator halfway through the rear motor and rail before placing the front regulator rail and motor through the rear access hole. Replace the front Window Regulator by forcing it into key slots where you will thread the bolts to secure the motor and rail then tighten them to 11n.m (97 lb in). The next step includes removing tape while you position the front window to the regulator carrier plate followed by hooking up the window with the plate and connecting the electrical connector to the front Window Regulator motor. Reinstall both the water deflector and the trim panel after installation.
