OEM Buick Rendezvous Shock Absorber

Buick Rendezvous Shock Absorber Parts and Q&A

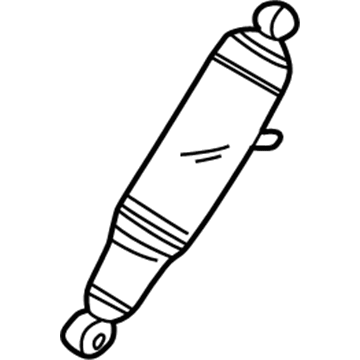

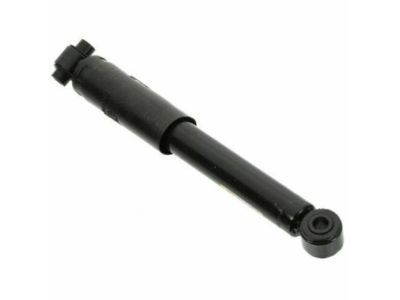

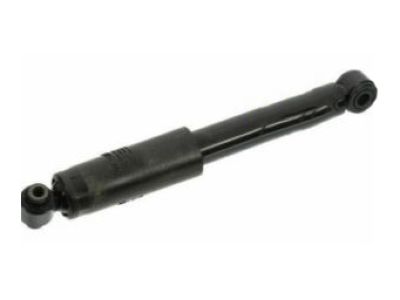

• Shock Absorber
  15233488
  Q: How to replace the shock absorber on a front-wheel-drive on Buick Rendezvous?

  A:

  Installation of a new Shock Absorber starts with raising and supporting the front-wheel-drive vehicle. A utility stand should compress the coil spring to decrease the Shock Absorber tension. The air tube connector must be removed from the Shock Absorber when automatic level control is present on the system. Start the Shock Absorber replacement by removing its upper bolt and accompanying nut before safely removing both the upper and lower bolts and finally taking out the Shock Absorber. During installation position the new Shock Absorber correctly then follow the provided fastener notice to achieve proper installation. Secure the Shock Absorber by using bolts and nuts then tighten them to 85 nm (63 ft. Lbs.). Connect the air tube connector to the Shock Absorber if automatic level control is present on the vehicle. After lowering the vehicle the utility stand should be removed from the rear axle.

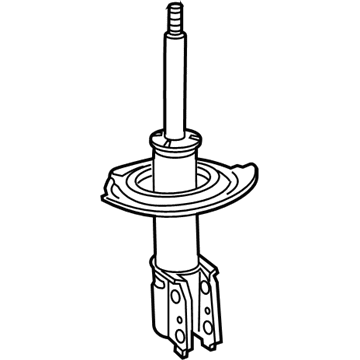

• Strut, Front
  22064790
  Q: What Tools Are Required to Service and Repair Front Coil Springs and Shock Absorber on Buick Rendezvous?

  A:

  The tools you will need to service and repair the suspension strut are: tools required are the holding fixture (J 3289-20), strut compressor (J 34013-B), damper rod clamp (J 34013-20), alignment rod (J 34013-197), strut rod nut socket (J 42991), strut lower adapter (J 34013-971 in kit J 34013-970), and strut upper adapter (J 34013-972 in kit J 34013-970). Remove the strut from your vehicle and put it on the holding fixture (J 34013-B), strut lower adapter (J 34013-971), and strut upper adapter (J 34013-972). Turn the strut compressor (J 34013-B) forcing screw so the spring compresses slightly, then use the t 45 torx (R) and strut rod nut socket (J 42991) to take off the strut shaft nut. Install and use the alignment rod (J 34013-197) to help you guide the strut shaft out of the upper mount, then loosen the compressor forcing screw as you guide the shaft out until the strut and spring can be removed. Assemble the strut by first connecting it to the holding fixture (J 34013-B), and then put the damper rod clamp (J 34013-20) onto the strut shaft. Slide the spring onto the strut with the correct side of the mount facing up, then put in the upper locking pin. Once the strut is attached to the holding fixture (J 34013-B) and both adapters, put the alignment rod (J 34013-197) through the upper strut mount into the strut shaft. Keep rotating the strut compressor (J 34013-B) forcing screw clockwise until the strut shaft line ups with the top of the strut assembly. Put the washer and nut onto the strut shaft, then remove the damper rod clamp (J 34013-20) and use a t 45 torx (R) and strut rod nut socket (J 42991) to tighten the strut shaft nut to 85 nm (63 ft. Lbs). After that, take the strut off the holding fixture (J 3289-20) and fit it into your vehicle.
