OEM Buick Regal Heater Core
HVAC Heater Core- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
6 Heater Cores found
Buick Regal Heater Core Part Number: 13406298
$56.21 MSRP: $166.40You Save: $110.19 (67%)Ships in 1-2 Business Days
Buick Regal Heater Core Part Number: 88956887
Buick Regal Heater Core Part Number: 19131980
Buick Regal Heater Core Part Number: 88956885
Buick Regal Heater Core Part Number: 52487191

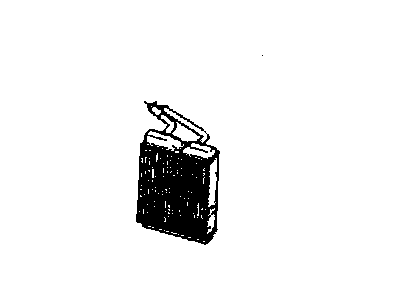

Buick Regal Heater Core Part Number: 19131975
Buick Regal Heater Core
Want to cut long-term maintenance and repair costs? Choose OEM Heater Core. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick Regal parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick Regal Heater Core includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Heater Core in Buick Regal automobiles is a part of the Car's air conditioning, and it functions more like a radiating part, takes the extra heat from the engine for heating up the car interior. Fabricated using aluminum or brass, the core is in charge of the hot coolant from the engine and car's blower to warm the passengers compartment. Various temperature control means including but not limited to the valves or doors control the flow of the coolant through the core for the required temperature changes. In the air-conditioned automobiles, the heater core also helps in the process of dehumidification via reheating of cooled air. Some of the problems that have been noted are blockage, leakage and rusting and in most cases to fix the problem a lot ofdashboard dismantling is needed. Besides, other heating methods could be employed for air cooled engines, but comes with the extra perils of safety.
Buick Regal Heater Core Parts and Q&A
- Q: How to Address Issues with the Heater Core on Buick Regal?A:The first step to replace a Heater Core involves taking off the fuel injector sight shield along with draining coolant from the system. You need to detach both heater hoses from the Heater Core while also removing the lower floor console when present and then walking down the lh and rh instrument panel insulators. The outlet cover must be moved downward and to the rear from the duct assembly before you can remove its screws and the outlet assembly. You will now detach the Heater Core cover by unfastening its screws while removing the cover along with seats (1, 2, 3) and Heater Core outer seal. First remove the Heater Core line clamp screw followed by its retaining clamp before moving on to the Heater Core pipe retainer clamp screw . Remove the Heater Core from its position inside the hvac lower case after discarding all seals consisting of the lower seal and center seal and upper seal and side seals. Insert the new side seals and upper seal along with the center seal and lower seal onto the hvac case before inserting the Heater Core. The installation requires a screw to fasten the Heater Core line clamp at 1.5 n.m (13 lb in) while the Heater Core mounting clip requires another screw with a proper 1.5 n.m (13 lb in) torque setting. Position the Heater Core outer seal to the Heater Core and afterward install new seals (1, 2, 3) onto the Heater Core cover. Secure the cover with its screws to 1.5 n.m (13 lb in) torque specification. Place both Heater Core outlet cover screws and tighten them to 1.5 n.m (13 lb in). Completing the service requires lower floor console installation if present together with lh and rh instrument panel insulators reinstallation followed by connecting the heater hoses to the Heater Core before refilling the coolant system and installing the fuel injector sight shield.
